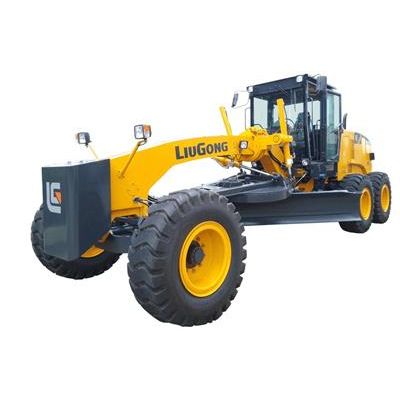

Liugong - Model 4140 - Motor Graders
Fuel Efficient Dongfeng Cummins Engine. Low Vibration, Noise, Dust +UV Resistant cab. Meritor wet axle with "no-spin" differential lock as standard. Balance box enables the 4 rear wheels to swing up and down by +/- 15°.
Most popular related searches
- Operating weight: 13,500 kg
- Blade width: 3660 mm
- Drawbar pull:70 kN
- Operating weight: 13500 kg
- Weight on front wheels: 4050 kg
- Weight on rear tandem: 9450 kg
- Drawbar pull: 70 kN
- Model: Cummins 6BTAA5.9-C150
- Emission regulation: Tier 2 / Stage II
- Rated power: 112 kW (152 hp) @ 2200 rpm
- Net power: 100 kW (136 hp) @ 2200 rpm
- Type: Power shift
- Speeds: 6f / 3r
- Maximum travel speed, forward: 41 km/h
- Maximum travel speed, reverse: 29 km/h
- Turning radius: 7200 mm
- Articulation angle: ±20°
- Maximum overall height: 3350 mm
- Width over tires: 2470 mm
- Blade width: 3660 mm
- Overall length: 8400 mm
