Max - Model 615 SL -Motor Mowers
FromBCS Group

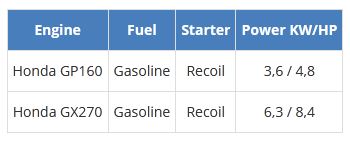

The BCS 615 SL Max mowers have a gearbox withtwo forward and two reverse speeds and a quick reverserto change the forwarding direction. You may choose from two types of gasoline engine: Honda GP160, 4,8 hp orHonda GX270, 8,4 hp.
Most popular related searches
The cutter bars available for the 615 SL Max have a working width of cm. 80, 100, 115 and 135 in the “Laser” version and cm. 115 in the middle cut fingers versions.
Equipped with adifferential with lock which allows a better maneuverability, the motor mowers 615 SL Max can be used in a versatile way for many maintenance operations and in any type of ground.
Width min / max (without attachment):
- with wheels 16x6.50-8: 566 mm
- No. of speeds FWD/REV: 2 + 2
- Quick reverser:yes
- Clutch:self-ventilating conic clutch
- Differential with lock:yes
- PTO:independent at 990 rpm with engagement in oil bath
- Brake:no
- Driving positionwith height and side adjustable handlebar mounted on shock absorbers to reduce vibrations
- Weightwith GX270 engine, 16x6.50-8 wheels, oil bath transmission and cm. 115 cutter bar: kg. 112

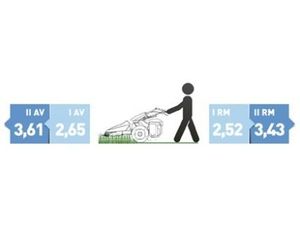

- Graph of the speedsin km/h with 16x6.50-8 tyres
