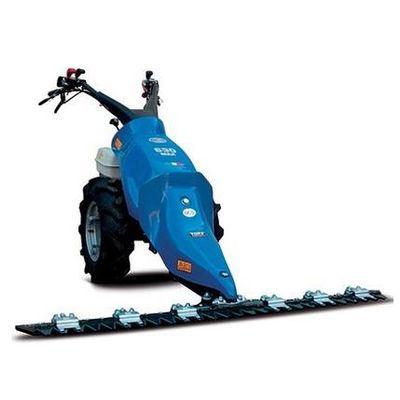

Max - Model 630 -Motor Mowers
FromBCS Group

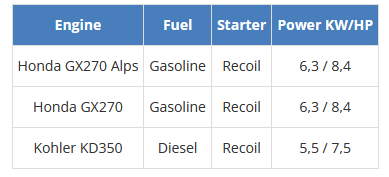

The BCS 630 Max mowers are equipped with a petrol engine8,4 hp Honda GX270available also inAlpsversion (recommended for steeply sloping uses) and a7,5 hp Kohler KD350 diesel engine.
Most popular related searches
The gearbox has four forward speeds, three reverse speeds and a quick reverser.
Thanks to their basic features, the motor mowers 630 Max can be easily used both in the hobby and professional sectors. The addition of thedifferential with lock andindependent brakes on the wheels makes it easier to handle and control.
The bars available, from 115 to 180 cm wide, are in the “Laser”, “Laser Elasto”, with middle cut fingers and Duplex versions.
The transmissions, which support and drive the cutter bars, are available in a dry type requiring the usual maintenance and maintenance-free "Torx" models in oil bath.

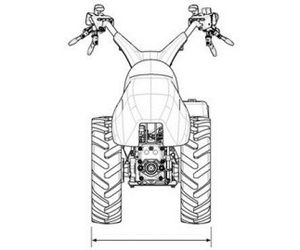

Width min / max (without attachment):
- with wheels 5.0-10: 503 / 575 mm
- with wheels 5.0-10 + Super Bite: 773 / 845 mm
- with wheels 21x11.00-8 Terra Tyre + wheel spacers: 867 mm
- No. of speeds FWD/REV: 4 + 3
- Quick reverser:yes
- Clutch:self-ventilating conic clutch
- Differential with lock:yes
- PTO:independent at 990 rpm with engagement in oil bath
- Brake:independent work brake on the two wheels and parking brake
- Driving positionwith height and side adjustable handlebar mounted on shock absorbers to reduce vibrations
- Weightwith GX270 engine, 5.0-10 wheels, oil bath transmission and cm. 135 cutter bar: kg. 141

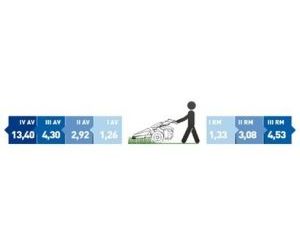

- Graph of the speedsin km/h with 5.0-10 tyres
