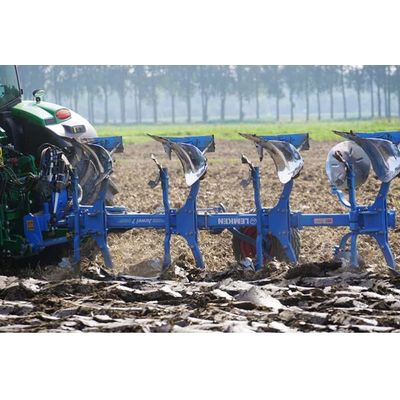

Lemken - Model Juwel 7 -Mounted Plough
The easy to pull Juwel 7 is available in 3 - 6 furrow versions with 4 or variably adjustable working widths. Numerous equipment options of the larger Juwel 8 and 10 ploughs are also available for the Juwel 7.
Most popular related searches
mounted bedding plow
plough
soil cultivation
furrow
furrowing
mounted cultivator
ploughing cultivator
tractor
cultivator
- From 3 to 6 furrows
- Tractors between 70 - 200 Hp | 51 - 147 kW
- 120 x 120 x 10 mm box section frame
- Frame diameter 120 mm
- Frame height 80 cm
- Body spacing 90, 100 or 120 cm
- Also available with mechanical non-stop overload safety device or hydraulic overload device OptiStone
- Choice from an extensive range of plough bodies, skimmers and other equipment
- Hydraulic turnover device UniTurn M 100 / M 120 for 6-furrow version
- Double acting turnover device
- Box section frame 120 x 120 x 10 mm
- Setting Centre Optiquick©
- Lower link attachment Cat. 3N=L2 Z3 (or Cat. 3 or 2)
- Tools and shearbolts
- Stand
- Underframe clearance 80 cm
- Two-piece shares (option: hard-faced one-piece stone shares)
- Hard-faced points (optional in angled version)
- Shape of DuraL bodies B, C, D or W
The availability and basic equipment of the machine may vary depending on the country. Please contact your dealer.
