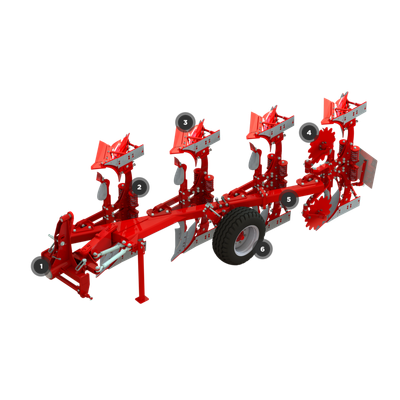

Opall - Model JUPITER III 120 -Mounted Plough

JUPITER III 120 models are three-, four- a five-plough bodied mounted reversible ploughs designed for tractors from 70 horsepower. During construction emphasis is placed on low weight combined with long service life of all components. The plough frame is constructed from a high-strenght 120 x 120 x 10 mm square steel tube giving the plough stiffness and durability. The most durable materials are also used for other parts of the plough which are further refined in order to achieve a high quality product with high utility value. The JUPITER III 120 plough is made in two versions according to the spacing between the plough bodies, specifically JUPITER III 120/90 and 120/100.

main advantage of the machine

Simple construction and emphasis on low weight predetermine the plough for aggregation with lower power ranges tractors. Despite the weight optimization, all the advantages and benefits of the JUPITER III 120 plough, which have been retained, are given by the use of the highest quality production materials. JUPITER III 120 is the light plough for small tractors. The target group is small farmers, who have a smaller tractor with a lower number of horses and therefore need a light plough. The whole plough is made with respect to weight. Construction team designed the materials to optimize the weight. JUPITER III 120 is proven simple machine.

JUPITER III 120

JUPITER III mounted ploughs are intended for aggregation with smaller tractors or for ploughing smaller fields. The smallest ones, located in the type series 120 marked, start on three coulters, while the modular system allows the plough to be extended to four coulters at any time. The Jupiter III 120 plough is thus suitable for aggregation with tractors up to 70 hp, but the main role is firstly soil type and own tractor.
