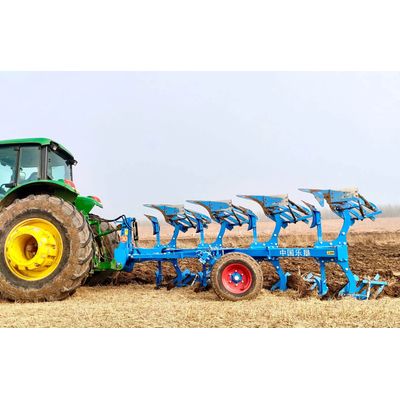

Demeter - Model L7 -Mounted Reversible Plough

SHARE

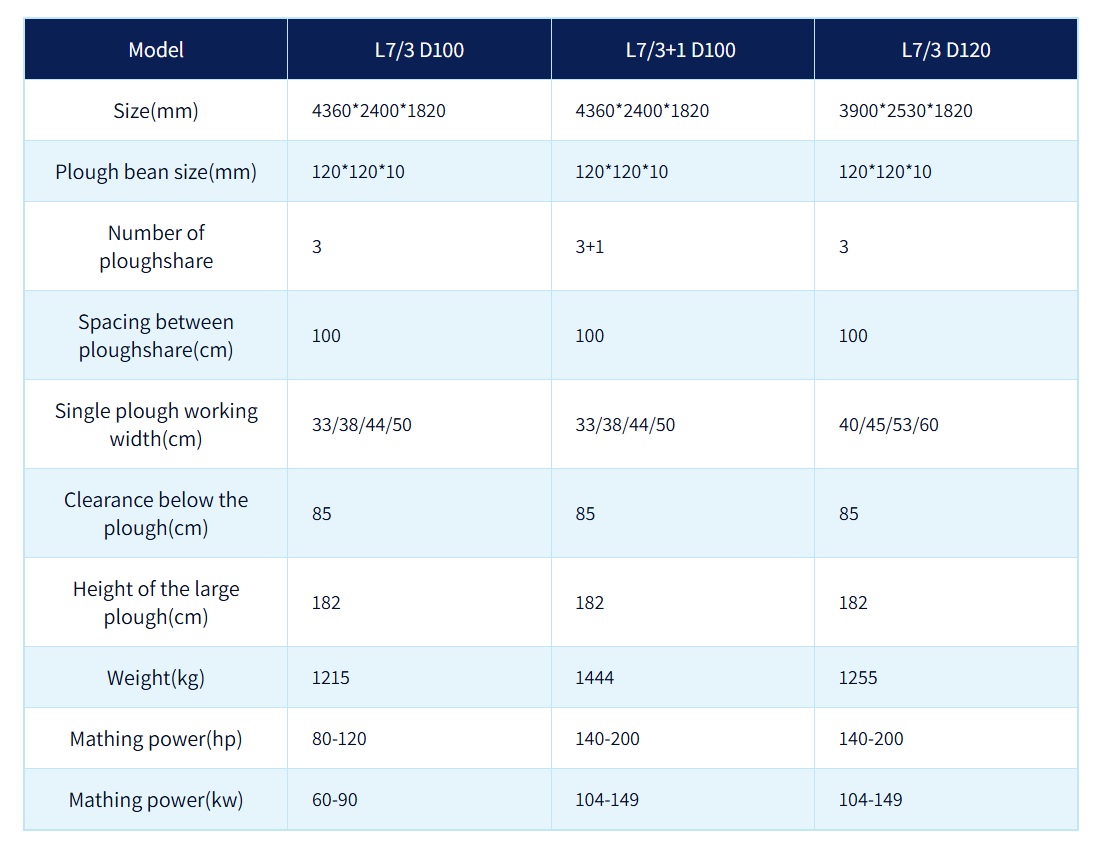

Frame dimension 120  x 120  x 10 mm. Frame height 85 cm. Body spacing 100cm. Also available with hydraulic overload protection. Choice from an extensive range of plough bodies, slatted and other equipment.

Most popular related searches
mounted reversible plough
reversible plough
mounted bedding plow
plough
shear bolt subsoiler
mounted cultivator
fertilizer product
soil conditioning
fertilizer production
agriculture machine
  • For tractors from 80-340hp
  • 3-6 furrows
  • Various frame size
  • Body spacing 100, 110 or 120cm
  • Durability: Made from high-strength materials like boron steel, ensuring longevity and resistance to wear.
  • Versatility: Adjustable working angles and depths cater to different soil conditions and agricultural needs.
  • Efficiency: Saves time and labor and fuel with quicker field turnaround, improving overall productivity.
  • Soil Preservation: By efficiently turning the soil, these ploughs help maintain its moisture and fertility.
  • Features a unified, reversible component structure made of specially treated steel that eliminates weld lines, enhancing strength, durability, and eliminating the need for maintenance.
  • Incorporates a plough head constructed from robust alloy steel paired with a bidirectional steering cylinder, facilitating smooth directional changes and precise transitions.
  • Offers a straightforward method to adjust the wheel's function using a locking pin, enabling easy transition between depth control and transportation modes.
  • Offers a straightforward method to adjust the wheel's function using a locking pin, enabling easy transition between depth control and transportation modes.
  • Utilizes specially crafted I-beams, assembled with high-strength steel plates for improved strength and longevity, surpassing the durability of traditional cast components.
  • Provides an optional, innovative furrow support system designed to prevent blockages caused by straw or plastic, utilizing new technology.

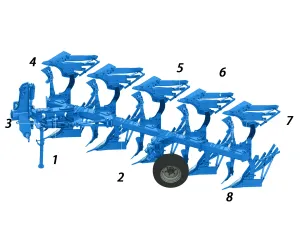

  1. Features an I-beam construction fused with high-strength steel plates, offering greater durability and an extended lifespan compared to traditional cast materials.
  2. Built from high tensile strength steel, ensuring increased reliability and lighter weight.
  3. Includes a one-piece reversible component, enhancing the reliability of operations.
  4. Equipped with a European-sourced double-acting steering cylinder and a sophisticated hydraulic control system.
  5. Boasts an optimal entry angle and superior wear resistance, attributed to the specially designed and materialized share points & wings, complemented by a 15mm additional wear layer.
  6. The slats undergo specialized hardening processes, extending their service life and enhancing impact resistance.
  7. Features effective overload protection through the use of a safety shear bolt on both the main and auxiliary furrows.
  8. Offers an augmented wear surface and improved clearance effects, thanks to the specialized design of the auxiliary furrow surface.
