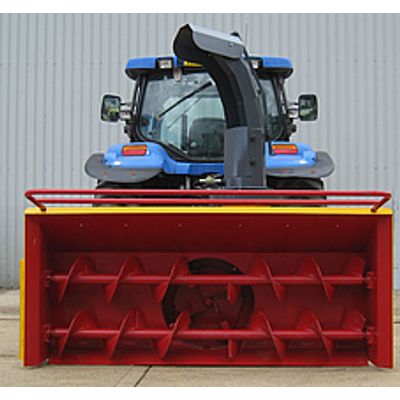

BUNCE - Mounted Snow Blower

• 2.3m and 2.55m, which can be mounted to the front or rear three point linkage.

Mounting systems

• (This is a gravity system as standard but there is the option to adjust the tilt hydraulically)

• The two stage system has two front augers which draw the snow in which is then fed into the fan which ejects the snow through the chute.
• The in-feed augers are driven hydraulically which gives the advantage that their speed can be varied in relation to the ejection fan to optimise performance in different snow conditions.
• Fitted with screw height adjustable replaceable skits to support blower as standard.
• Two rams are used if the option of hydraulic tilt is ordered.
• Chute is turned hydraulically as standard.
• Now fitted with a drop gearbox as standard to ensure that the PTO shaft is working at an optimal angle.
• Top deflector on chute operated manually as standard but can be adjusted electrically.
• Top of the fan casing can be easily removed to access the fan without the need to remove the augers. This plate can be reversed and a different fan fitted to cater for mounting on the front or rear of tractor
