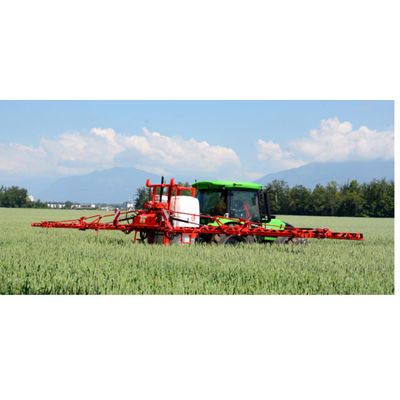

Agromehanika - Model AGS 1000-1200 EN H -Mounted Sprayer
AGS 1000-1200 EN H mounted sprayers are professional machines, particularly characterized by modern technology and robust construction. This enables the user to spray at higher speeds and to work on large surface areas. These sprayers are fully compliant with strict European environmental and spraying standards.
AGS 1000-1200 EN H mounted sprayers are professional machines, particularly characterized by modern technology and robust construction. This enables the user to spray at higher speeds and to work on large surface areas. These sprayers are fully compliant with strict European environmental and spraying standards.
- Tanks with a capacity of 1000 and 1200 l
- Fully hydraulic boom sets of 15, 16 and 18 m MY H
FRAME
A robust frame of the sprayer made from high-quality steel ensures a long service life.
Its structural design ensures a short barycentre distance between the tractor and machine, a well-stirred spraying agent mixture, drainage of the tank and a simple cleaning process. The lower support legs mounted on the frame enable appropriate positioning and stability of the sprayer when not attached to the tractor.
A modern powder coating method provides an effective protection of the frame.
MAIN TANK
Capacities of 1000 and 1200 l are available. Modern design with rounded edges, smooth interior walls and inclined bottom ensures complete drainage and efficient cleaning.
The tank is made from chemically resistant polyethylene. It features a large lid with a strainer mounted at the top of the tank to facilitate filling operations. The tank includes an engraved litre scale for easier reading of the quantity of the chemical agent
RINSING TANK
It is intended for rinsing the main tank and other elements when spraying is finished or interrupted.
The rinsing tank is integrated in the main tank. It can only be filled with clean water. The capacity of the tank is 100–127.5 l.
HAND-WASH TANK
It is designed for washing your hands after handling spraying agents.
The hand-wash tank is incorporated in the main tank. It can only be filled with clean water. The capacity of the tank is 13.7 l.
PUMP
Agromehanika BM 150/20 diaphragm pump is suitable for pumping spraying agents and liquid fertilizers. It is manufactured from factory tested materials. Its 3-year warranty offers an additional quality guarantee.
- Low-pressure 4-piston diaphragm pump
- Diaphragms are produced from high-quality NBR rubber.
- Aluminium casing
It mixes the spraying agent and prevents the build-up of chemical residues on the bottom of the tank.
The nozzle is actuated by a directional control valve mounted on the pump. It is installed in the bottom section of the tank.
FILLING TANK WITH A CONTAINER RINSING NOZZLEIt is designed for thorough mixing and pumping the spray into the main tank. There is a container rinsing nozzle installed inside the filling tank.
The capacity of the tank is 30 l.
EXTERNAL FILLINGThe main tank and the rinsing tank can be filled externally.
The main tank is filled by a pump. In addition, the user can also opt for hydrant filling (optional equipment).
FULLY HYDRAULIC 15–18 MY H
Robust hydraulic boom sets with working widths of 15, 16 or 18 m ensure reliable and efficient operation at high spraying speeds.
- Hydraulic control from the tractor cab
The boom set is hydraulically operated by the control panel that provides control over lifting, levelling, and blocking operations, as well as double-sided or individual opening and closing of the left or right boom.
- Single-point hitch
The boom set is mounted on a single-point hitch (eye bearing), enabling an even spray distribution and continuous adjustment of the boom to the terrain conditions in all movement directions. Polyurethane springs are installed to ensure lateral shock absorption and optimal response of the boom set to changing terrain conditions.
- Hydraulic opening and closing of the spray boom set
It allows simultaneous opening of both sides of the spray boom or individual opening and closing of the left or the right boom. The spray boom set features a safety system to prevent the arms from opening or closing when in working position. The operating speed of hydraulic cylinders is adjustable.
- Hydraulic lift system
Hydraulic lift system consists of a single-acting hydraulic cylinder. An integrated safety system prevents the spray boom set from suddenly dropping in the event of hose breakage. The hydraulic cylinder speed can be adjusted.
- Hydraulic levelling or terrain following
Hydraulic levelling can have a significant impact on even distribution of spray to the surface and, as a result, on the spraying quality. This system is highly recommended for uneven or inclined surfaces as it allows for adjustment of the spray boom set to certain terrain inclinations. The operating speed of the hydraulic cylinder is adjustable.
- Hydraulic lock with dampers
This system is only used during transport and spraying with partially open boom set (only left or right side). In addition to hydraulic cylinder, the system also features compression springs for additional damping. The operating speed of the hydraulic cylinder is adjustable.
- Vertical damping with air bellows
Pneumatic vertical suspension provides additional protection against damages to the spray boom set when spraying at higher speeds or on uneven terrains. The vertical suspension system consists of two air bellows and an inflation valve. The bellows are filled with high-pressure compressed air.
- Transport guards
The boom set includes mechanical guards, preventing uncontrolled opening of side arms in the transport position. Transport guards improve the overall manoeuvrability of the sprayer and thus enable higher transport speeds.
- Nozzle protection
The boom arms are designed to protect the nozzles from potential damages (impact with the ground or an unexpected obstacle).
- Safety arm and spring sliders
If the sprayer encounters an obstacle, the rear arm moves away and then automatically returns to the original position. The spring sliders prevent the boom set from hitting the ground if the sprayer undergoes sudden movements.
TRI-JET Agromehanika nozzle holders are equipped with an anti-drip diaphragm valve to prevent unwanted dripping from the nozzles.
Thanks to the control panel, the boom set can be controlled from the tractor cab. It is operated by tractor hydraulics.
The hydraulic system is used to control lifting, levelling or terrain following, locking and simultaneous or individual opening of the left or the right boom.
AG-TRONIK 14 SPRAYING COMPUTERAG-TRONIK is a modern computer manufactured by Agromehanika which is used for monitoring and automatic adjustment of spray volume per hectare. It makes the spraying process easier, more accurate and more efficient.
- Thanks to AG-TRONIK, the user’s attention can really be focused on driving.
- Monitoring and automatic adjustment of dosage per hectare are controlled by a flow pressure regulator and a speed sensor.
- It is operated from the tractor cab.
- It can be operated automatically or manually. Spraying is controlled by electric motors.
- All important data is simultaneously displayed on the main screen.
- A number of parameters can be adjusted according to user requirements.
- The spraying data can be saved or transferred to PC`s, laptops and tablets by using an SD card.
- The system can be connected to GPS navigation.
