SIP Strojna Industrija d.d

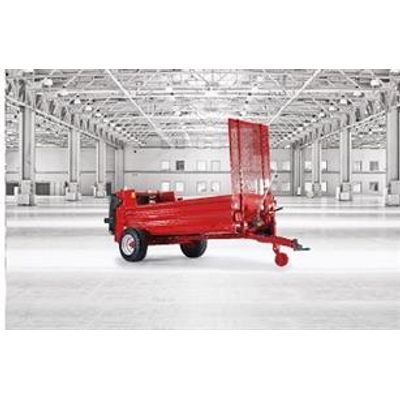

SIP - Model ORION 35 ALP -Muck Spreader
The spreading rollers on the device are carefully arranged to ensure the fast and even flow of material. The robustly designed helix of the spreading beater enables the optimal fragmentation of the manure. The automatic chain tensioning system (ACT) ensures a constant tension of the scraper floor chains, regardless of the amount of material. The result is efficient and even spreading of the manure. The spreading unit consists of two/four vertical HD beaters enables fine and even spreading up to 8 m.
Most popular related searches
- The ORION 35 ALP`s chain floor conveyor has a four-speed mechanical drive via a PTO and a cogwheel.
- The ORION 35 ALP spreading device with rear protection and a pair of spreading beaters with toothed segmented spreading elements for fine spreading.
- It comes with a serial rear wall, which is fitted when the spreading unit is removed and the spreader is used as a standard trailer.
- Gross weight (kg) 3500
- Load capacity (kg) 2250
- Weight [kg] 950
- Max. length (m) 5,00
- Max. width (m) 2,06
- Max. height (m) 2,6
- Height of sides (m) 0,5
- Loading surface (m) 3,2x1,2
- Loading volume (m3) 2,8
- Drawbar load (kg) 500
- Required tractor power [kW] 15
- Distance between wheels (m) 1750
- PTO (rpm) 540
