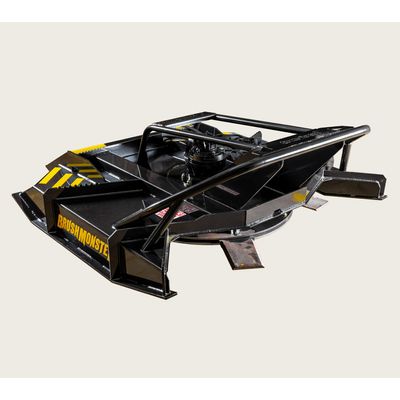

BRUSHMONSTER - Model Revolution AXE -Mulcher / Rotary Cutter
In our search for the best American-made parts we could find, the Revolution series was born. The AXE cutter leads the way, utilizing the strongest Bent Axis Piston motor available, pushing hardened steel blades, and true forestry style mulching teeth bringing destruction wherever it goes.
Most popular related searches
skid steer cutter
skid steer
rotary cutter
mulching
mulch
forestry mulching
tree cutting
mulcher
forestry
cutting deck
- 31-45 GPM
- Axial Piston Motor
- Rated Tree size 10 inches
- Deck Width 77"
- Deck Length 84"
- Weight 1750#
- Case Drain Required
- Bent Axis Piston Motor
- 97% efficiency rating up to 6000 PSI
- 1200 RPM @ Max GPM
- Can withstand up to 40 micron contamination
- Shaft diameter: 3.625"
- 30,000 PSI Column pressure rated
- 43,000 PSI Side Load pressure rated
- Large oil capacity to keep down heat.
- Locking Pin to secure shaft if bearing failure should occur.
- Stacked Plate Design
- Four Hardox450 Blades (40% more wear resistant than AR400)
- 3/4" Thick
- 19" Long
- 6" Wide
- Sixteen 1 1/8" concave mulching teeth
- Two 1/2" plates with additional 1/2" brace ring around the perimeter of lower plate.
- Easy blade change with access through top of deck
- Cuts stumps off even with the ground
- Open Front Push Bar Design
- Easier access to larger trees
- Cleaner finish cut on grass and small trees
- Pointed deck corners for selective cutting
- Sloped side push bar to cut closer to leaning trees, guy wires, etc
- Low angle quick attach
- allows an 85% roll up to cut overhanging limbs
- smaller footprint for more maneuverability in tight areas
