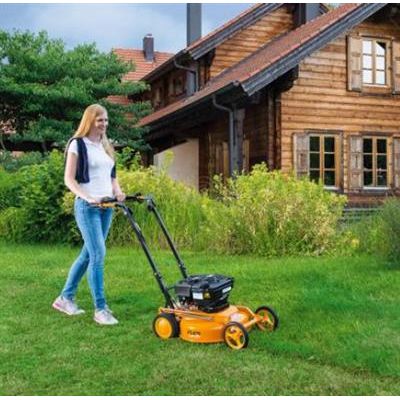

AS Motor - Model AS 470 ProClip 4T A - Mulching Mower

SHARE

The clean-out mower with a drive function. At 34 kg and with a 47 cm cutting width, the AS 470 ProClip 4T A is ideally suited for clean-out tasks on larger areas and slight inclines. The Briggs & Stratton engine not only delivers up to 5.5 hp, its asymmetric arrangement also ensures excellent handling thanks to a balanced distribution of weight. A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen objects. A galvanised steel mulching unit with reinforced edges guarantees a long service life, robustness and operator safety, even in difficult conditions.

Most popular related searches
mulching mower
mulching
mulch
mower unit
turf mower
grass mulching
disc mulching
fertilizer
mulch layer
lawn fertilizer

Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, which quickly springs back up to be cut by the blade. This delivers extremely uniform cutting results. Cutting height can be adjusted to 5 levels from 40–80 mm via a spring-supported system, by foot or by hand. Aggressive tread rear wheels ensure optimal traction and propulsion.

Save time and money by mulching
A deep mulching unit delivers even finer cutting results. The mulching blade cleanly cuts grass up to 18 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s multiple cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out. The AS 470 ProClip 4T A saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag or dispose of the cuttings.
Up to 30% time saved
No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine
Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Traction drive (AS 470)
Comfortable work thanks to a switchable rear-wheel drive.

Robust construction
Galvanised steel mulching unit with reinforced edge. Stable, height-adjustable guide bar.
  • cutting width 47 cm
  • maximum grass height "mulching" 18 cm
  • engine manufacturer B&S
  • engine designation 850E I/C
  • 1-cyl.engine, 4-stroke / 2-stroke /
  • maximum power 4,1/5,5 kW (hp)
  • rated power 3,1/4,3 kW (hp)
  • rated speed 2800 rpm
  • blade clutch
  • third crankshaft bearing for engine protection
  • 100% mulching function
  • additional side discharge
  • cutting height 40 - 80 mm
  • central cutting height adjustment
  • cutting height adjustment, number of levels 5
  • rear-wheel drive
  • number of gears 1
  • max. speed 2,5 km/h
  • Handlebar adjustment: height
  • vibration-protect
  • tank capacity 1,2 l
  • dimension L/W/H 131x51x100 cm
  • weight 34 kg
