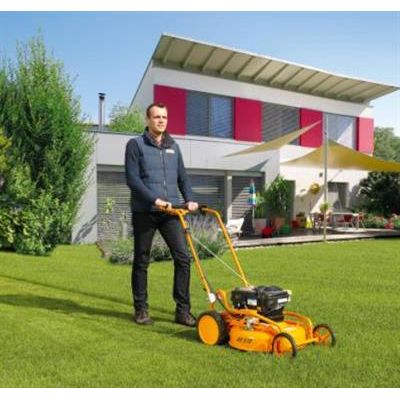

AS MotorModel AS 510 ProClip 2in1 4T A - Mulching Mower

SHARE

The AS 510 ProClip 2in1 4T A offers work rates reaching 2,100 m² per hour due to a high-performance Briggs & Stratton engine and a 51 cm cutting width. The Briggs & Stratton engine not only delivers up to 5.5 hp, its asymmetric arrangement also ensures excellent handling thanks to a balanced distribution of weight. A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles while a variator allows the speed to be conveniently adjusted from 2.1–4.3 km/h while in motion. Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, which quickly springs back up to be cut by the blade. Cutting height can be adjusted to 5 levels from 40–80 mm via a spring-supported system. Aggressive tread rear wheels ensure optimal traction and propulsion.

Most popular related searches
Save time and money by mulching.
The deep mulching unit delivers even finer cutting results. The mulching blade cleanly cuts grass up to 18 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s multiple cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out. The AS 510 ProClip 2in1 4T A saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag or dispose of the cuttings.Mow or mulch: The AS 510 ProClip 2in1 4T A mulching mower is factory-equipped with an easy-to-mount mulch plate and side discharge deflector..

2in1 function
Mulch or mow with side discharge, the AS 510 2in1 can do both.

Up to 30% time saved
No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine
Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Traction drive (AS 510)
Comfortable work through variable adjustable speed (variator) in conjunction with large, aggressive tread drive wheels for optimal traction.

Stable double frame
Stable tube frame with replaceable mulching unit.

  • cutting width 51 cm
  • maximum grass height "mulching" 40 cm
  • engine manufacturer B&S
  • engine designation 850E I/C
  • 1-cyl.engine, 4-stroke / 2-stroke /
  • maximum power 4,1/5,5 kW (hp)
  • rated power 3,1/4,3 kW (hp)
  • rated speed 2800 rpm
  • blade clutch
  • third crankshaft bearing for engine protection
  • 100% mulching function
  • additional side discharge
  • cutting height 40 - 90 mm
  • central cutting height adjustment
  • cutting height adjustment, number of levels 6
  • rear-wheel drive
  • number of gears Vario
  • max. speed 4 km/h
  • Handlebar adjustment: height
  • vibration-protect
  • tank capacity 1,2 l
  • dimension L/W/H 139x55x100 cm
  • weight 45 kg
