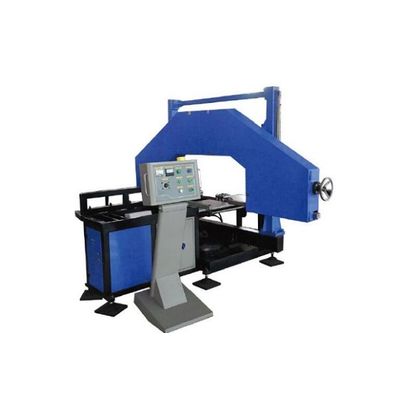

Suda Machinery - Model SDC315 - Multi-angle Band Saw
Suitable for cutting pipes according to specified angel and dimension while making an elbow, tee or cross, which lowest the material waste and improve the welding efficiency. Cutting angle 0-67.5° accurate angle location. Applied to solid pipes or structured wall pipes made of thermoplastic such as PE and PP, and also other pipe and fittings made of non-metal materials. A special designed integrality of body and swivel table makes them extremely stable. Self inspection and stop of the machine in case of saw blade breaks enables to guarantee operator`s safety. Reliability, lower noisy, easy to handle.
Most popular related searches
Model : 3DC315
- Welding Range(mm) : <315mm
- Cutting Anglo : 0-67.5°
- Cutting Angle Error : <r
- Line Speed : 0-250m/min
- Feed Speed : Adjustable
- Working Voltage : 380V 50HZ
- Total Power : 2. 25KW
- Weight : 1500KG
Model : SDC030
- Welding Range(mm) : ^ 630mm
- Cutting Angle : 0-67.5*
- Cutting Angle Error : <r
- Line Speed : 0-255m/min
- Feed Speed : Adjustable
- Working Voltage : 380V 50HZ
- Total Power : 3. 7KW
- Weight : 1900KG
Model : SDC800
- Welding Range(mm) : s£ 800mm
- Cutting Angle : 0-67.5*
- Cutting Anglo Error : <r
- Line Speed : 0-250m/min
- Feed Speed : Adjustable
- Working Voltage : 380V 50HZ
- Total Power : 3 7KW
- Weight : 2300KG
Model : SDC1000
- Wtlding Range(mm) : 450mm^ © ^ 1000mm
- CuttingAngle : 0-67.5*
- Cutting Anglo Error : <1*
- Line Speed : 0-255m/min
- Feed Speed : Adjustable
- Working Voltage : 380V 50H2
- Total Power : 3. 7KW
- Weight : 4000KG
