GroPoint - Model Profile - Multi-Depth Soil Moisture and Temperature Profile Sensor

Moisture:

• Measurement range: 0% to 100% of VMC
• Accuracy: ±2.0% *
• Precision: < 0.2%

Temperature:

• Measurement range: -20°C to +70°C (-4°F to 158°F)
• Accuracy: ±0.5°C

Electrical:

• Output: SDI-12 V1.3 (RS485 and Modbus optional)
• Connection: Bare wire (optional 5-pin M-12 or 4 pin EN3 IP68 rated environmental connectors)
• Input voltage: 6 to 14 VDC max. 18 VDC
• Current consumption: Quiescent: Active: 15-20 mA (depending on number of segments) for 100 mS

Warm-up time on power up:

Environmental:

• Operating temperature: -20°C to 70°C (-4°F to 158°F)
• Storage temperature: -40°C to 85°C (-40°F to 185°F)Physical

Physical:

Length:

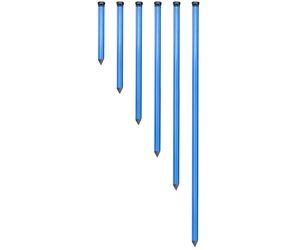

• Each segment is approximately 15 cm (5.9") long. Total length is the number of segments multiplied by 15 cm.
• For example, a 3-segment probe is about 45cm long.

Probe weight:

• 2 segments: 292 g (10.3 oz.)
• 3 segments: 351 g (12.4 oz.)
• 4 segments: 408 g (14.4 oz.)
• 5 segments: 468 g (16.5 oz.)
• 6 segments: 526 g (18.6 oz.)
• 8 segments: 642 g (22.6 oz.)

Temperature Placement:

• 2 segments: 3.5cm, 10cm, 20cm, and 30cm
• 3 segments: 3.5cm, 10cm, 20cm, 30cm, 40cm, and 45cm
• 4 segments: 3.5cm, 10cm, 20cm, 30cm, 40cm, 50cm, and 60cm
• 5 segments: 3.5cm, 10cm, 20cm, 30cm, 40cm, 50cm, 60cm, 70cm, and 75cm
• 6 segments: 3.5cm, 10cm, 20cm, 30cm, 40cm, 50cm, 55cm, 65cm, 75cm, 85cm, and 90cm
• 8 segments: 3.5cm, 10cm, 20cm, 30cm, 40cm, 50cm, 55cm, 65cm, 75cm, 85cm, 95cm, 100cm, 110cm, and 120cm

• Cable weight: 38 g per m (0.42 oz. per foot)
• Standard cable: 3 m (9.8 ft.)4xAWG22 dual-shielded, twisted pair, rated for direct burial
• Warranty: 1-year limited parts and labour

• Perfect for research, vineyards, vegetable crops, fruit trees and many more agricultural applications.
• Eliminates need for multiple soil moisture sensors and cabling systems.
• Measures across the entire length of the soil moisture probe, averaging the volumetric water content and soil temperature in each segment
• Installs quickly and easily without excavating.
• One SDI-12 address is used to read all segments, providing simplified installations. Optional MODBUS/RS-485 output.
• Soil moisture readings can be user-calibrated with 3rd-order polynomials to meet custom requirements.
• Low power requirements-suitable for remote, autonomous applications.
• Patented TDT5 technology for scientific-grade accuracy and excellent long-term stability of measurements.
• Fully potted electronics for excellent durability.

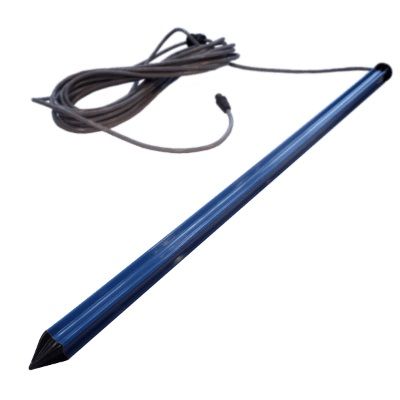

GroPoint™ Profile is a scientific-grade and cost-effective soil moisture probe that measures the volumetric water content and soil temperature over multiple depths using a single probe. It can be deployed in sensitive agriculture zones to enable full control of irrigation, increase water-use efficiency and provide an understanding of water movement throughout the soil.

Unlike other multi-depth soil moisture probes, GroPoint Profile is the only one on the market to provide a true soil moisture profile. It continuously measures the soil moisture across the entire length of the probe by averaging the volumetric water content across each segment (15cm or 6"). This unique feature provides continuous measurements of water movement throughout the soil rather than at discrete positions on the probe, which cause "dead spots" in the soil profile.

The sleek, lightweight design installs quickly using a pilot rod and slide hammer tool with minimal soil disruption. Our soil probe design eliminates the cumbersome excavation that is required when installing other profiling probes. GroPoint Profile is designed for vertical installation to make continuous soil moisture and soil temperature measurements over multiple soil layers.
