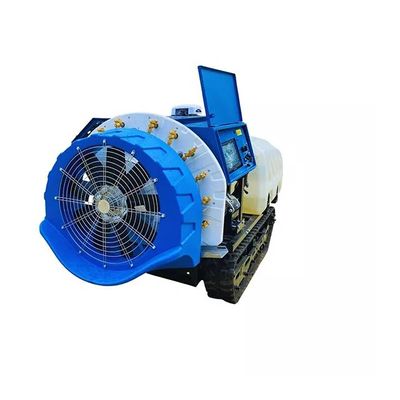

Lanjiang - Multi-Function Orchard Robot

Save labor to a greater extent!

• Efficient operation, no need for large quantity of workers.
• Easy operation, no need for skillful driving.
• Large capacity, no need for frequent refilling pesticide and power.

• Crawler chassis.
• Can shuttle in narrow corner.
• Climb uneven grounds.
• No fear of soil in rainy days.
• Dwarf and narrow body.
• Can shuttle in greenhouses.

• Function: Pesticide spraying, weeding and transporting
• Power Type: Petrol-electric Hybrid
• Power Specifications: 15kw petrol engine + 5*45AH large-capacity battery
• Wheel Type: Caterpillar
• Overall Dimensions: 190cm(L)*120cm(W)*115cm(H)
• Ground Clearance: 17cm
• Pesticide Tank Volume: 450L(super large)
• Spraying Range: 15m wide, 6m high
• Atomizing Effect: 150-400μm (droplet size too small, will be blown by wind; too large, will drip down)
• Climbing Ability: 30° MAX climbing angle, 15° MAX inclination
• Movement Precision: RTK accurate positioning, self-driving precision ±5cm deviation
• Movement Speed: 3km/h MAX
• Maximum Load: 1000kg
• Operation Time: 1 tank of petrol ≥8h; 1 tank of pesticide ≥26min
• Operation Efficiency: 5.93 acre/h
• Operation Method: Remote Control Mode & Autonomous Mode
• Nozzle: 12 adjustable(can adjust 30°) double heads(0.8mm diameter and 1.2mm diameter) nozzles
• Safety: Electronic fence, ultrasonic radar, automatic stop before barriers
• Intelligence: Real-time positioning, low pesticide liquid level alarm
