Arad Ltd.

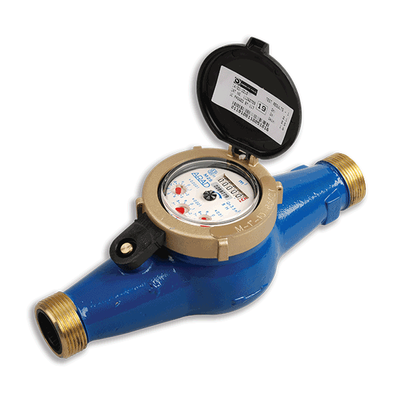

Arad Group - Model M - Multi-Jet Magnetic Water Meter for Residential, Agricultural, and Industrial Use
FromArad Ltd.
The M – Multi-Jet Magnetic Water Meter is a robust and reliable flow measurement instrument designed for residential, agricultural, and industrial applications. Utilizing the multi-jet principle, this water meter balances cost efficiency with performance and long operational life. Its design minimizes wear, given the wide clearances in the measuring chamber and the reduced contact between static and moving components, which is particularly advantageous in conditions with hard water. The meter is available in a range of sizes from DN15 to DN32 (1/2” to 1 1/4”) and supports Dialog 3G™ communication protocols along with outputs such as EV, EF, and ER. It adheres to several standards, including MID 2014/32/EU and WRAS certifications, ensuring compliance with OIML, EN, and ISO guidelines. The MH model variant is available for hot water applications. The meter's construction and certifications make it suitable for diverse uses, ensuring accurate water flow measurement.Most popular related searches
Water meters using the multi-jet principle are the best cost/performance, long life, flow measurement instruments.
Wide clearances in the measuring chamber and negligible area of contact between static and moving parts are the main reasons for the high reliability of this design even in hard water.
MH model for hot water available.
Applications
For residential, agriculture and industrial use
Available Sizes
DN15-DN32 (1/2”-1 1/4”)
Communication
Supported Protocols: Dialog 3G™
Supported Outputs: EV, EF, ER
- Only one moving part – the impeller – in contact with the water for minimum wear and utmost reliability
- Magnetically driven sealed registers. Stainless steel/glass
encapsulated option is unconditionally guaranteed against fogging - Wide selection of dial configurations (3 pointers; central pointer) and units of measurements
- Optional Electrical Output – EV, EF, Dialog 3G, ER
MID 2014/32/EU (based on OIML R49:2013, EN 14154 and ISO 4064:2014)
WRAS 1307073/ 1504700
