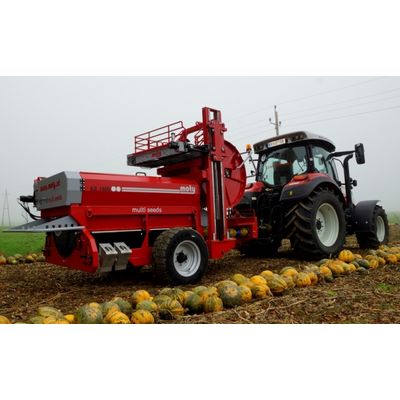

Moty - Model KE 1800 MS - Multi Seeds Pumpkin Seed Harvester

SHARE

Die KE 1800 MS multi seeds is our all-rounder. The compact machine is built for harvesting of pumpkin, cucumber, zucchini, melon etc. The removable shield plate enables adaptation to different seed sizes and easy to clean. The after cleaning of the seeds is made by the silent and high effective ARS 2.0 system. Ideal for customers with small fields and seed producer.

Most popular related searches

pumpkin seed harvesting

seed harvesting

pumpkin harvesting

harvesting system

Performance: up to 4 ha / day
Drive: mechanic / hydraulic
Power consumption: min. 33 kW / 45 hp
Dimensions (LxWxH): 4.950 x 2.100 x 2.800 mm
Pick-up: Ø 1.250mm, 7-rows
Screening drum: L=2.000 mm
Weight: approx. 3.500 kg
Control (on tractor): 3 x one way control valve (1 x free return) pick-up, conveyor, ARS 2.0

compact / lightweight construction
low power demand
removable shield plate for easy adaptation to different seed sizes and easy cleaning
ARS 2.0 seed cleaning-silent and power saving
ideal combination of mechanic and hydraulic drive
proven moty-quality

TECHNICAL DATA
Performance: up to 4 ha / day
Drive: mechanic / hydraulic
Power consumption: min. 33 kW / 45 hp
Dimensions (LxWxH): 4.950 x 2.100 x 2.800 mm
Pick-up: Ø 1.250mm, 7-rows
Screening drum: L=2.000 mm
Weight: approx. 3.500 kg
Control (on tractor): 3 x one way control valve (1 x free return)
pick-up, conveyor, ARS 2.0

STANDARD EQUIPMENT

Pumpkin pick-up

belt conveyor with hydraulic drive
pich-up: diameter 1.250 mm, 7 rows
pick-up hydraulically liftable and pivotable into street position manually

Crushing unit

crushing area made of hardox
crushing plate with 2 x 2 knives
crushing drum with 3 crushing areas
screwable crushing ledges

Pumpkin seed separation and cleaning

screening drum length: 2.000 mm
removable shield plate for adaptation to different seed sizes and easy cleaning
seed cleaning with ARS 2.0 (with different perforation available)

Seed tank and emptying

exchangable palette boxes 1200 x 800 mm (approx. 530 L) used as seed tank

Drive

mechanic drive with chains, ratation speed 540 rpm for crushing and screening drum
hydraulics components from Danfoss for conveyor and ARS 2.0
wide angle drive shaft with overload protection (EU profile) Walterscheid

General

coupling on the towing bar
(level adjustment by lower arm position)

ADDITIONAL EQUIPMENT

funnel for external feeding
bypass - without seed cleaning
conveyor belt for manual feeding
shield plate with differentperforations 3, 5, 8 mm
Merged oil connections for conveyor belt and ARS 2.0
grain tank with unloading auger
