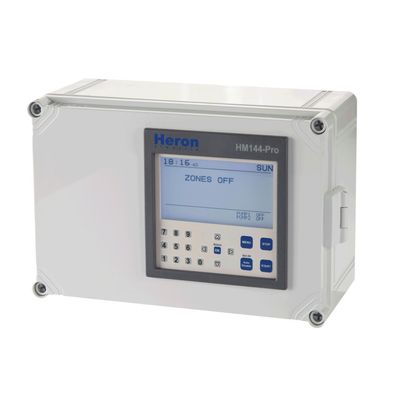

Heron - Model HM-Pro - Multi Wire Controller

SHARE

Intelligent water management with Heron’s most powerful multi-wire irrigation controller. The HM-Pro provides an extremely reliable and flexible solution for irrigation in horticulture, landscape, agriculture and glass houses.

Most popular related searches
multi-wire controller
soil moisture and temperature sensor
soil moisture and temperature
irrigation control
horticulture irrigation
irrigation program
irrigation weather station
irrigation
soil moisture sensor
irrigation event
  • Up to 28 independent programs.
  • Naming of programs, valves and inputs.
  • Calculation of program end time for automatic starts.
  • 64 configurable automatic starts. Day of the week, weekend, week day, variable, once only on a specified date.
  • Up to 8 continual cycling starts.
  • Up to 3 co-valves can be assigned to any valve.
  • High and low flow limits can be set per valve.
  • Valve times can be set from a minimum of 3 second to 60 hours.
  • Rainfall can be monitored over 1 to 4 days, irrigation programs can be reduced by 25%, 50%, 75% or 100%.
  • Valves can be defined for back flush use.
  • Programs can be integrated with light, rain, humidity, soil moisture and temperature sensors or full weather station.
  • Irrigation can be controlled from a calculated evapo-transpirition (ET) value. The ET value can be calculated every hour.
  • Comprehensive event log.
  • Fertigation facility to run fresh water followed by fertilizer and then fresh water.
  • Extra large graphical display - 115mm x 80 mm.
  • Up to 4 multi-wire cable drivers can be connected to one irrigation controller.
  • Run up to 4 valves in parallel on one cable driver.
  • Total output current of each multi-wire cable driver is 1.0A.
  • 4 inputs as standard, start, stop, weather station and flow meter.
  • Compatible with any 24V AC solenoid valve.
  • Up to 9 flow meters can be connected. Real-time flow monitoring.
  • Flow meter input can read to 0.1LPM.
  • Up to 16 remote inputs available.
  • 2 pump outputs
  • Operate 96 valves with one additional add box, 144 valves with two additional add boxes.
  • Designed to operate in an industrial environment. High electrical noise immunity and all outputs protected against
    electrical surges exceeding ANSIC62 surge suppression standards.
