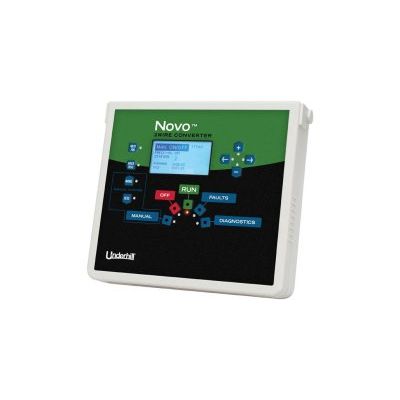

Novo - Multi-Wire Controller

• Converts existing multi-wire controllers to 2Wire operation
• Ideal for new as well as retrofit applications
• Use all of the programming capabilities of the "host" controller
• Built-in electrical diagnostics/fault-finding functions

Typical applications
Large residential estate, light commercial, commercial, golf and AG applications

Ideal for New or Retrofit Installations
Easy for new installations, or use existing field wires to reconnect previously abandoned stations or add new stations

Use the Power of an Existing Controller
The Novo works with any controller and simply transmits the 24 VAC signal down a 2Wire path. Use all of programming functions by the “host” controller.

Built-in Troubleshooting / Fault-Finding Functions
Reduce the time and effort to locate a problem when it occurs allowing the Novo to pinpoint

Optional Outdoor Enclosures
The Novo can be install in a wall-mounted high-impact plastic enclosure or a stainless steel enclosure with key-lock entry

• Station Count: Manage up to 32 stations in standard mechanical footprint or up to 63 stations by adding 8-station senders (TW-SEN-8)
• Menu Driven Display: Run, Faults, Diagnostics, Programming, Off and Manual
• Backlit Display: 128 x 64 backlit, black and white display

Standard Features:

• Plastic indoor Novo Case
• External transformer
• 4 (qty) 30" long color-coded pre-attached, color-coded cable assemblies

Transformer Output:

• 32 VAC - Maximum Input Voltage 32 VAC
• 1.3 Amps @120 VAC, 60 Hz Maximum
• Continuous 2Wire main path current
• 1.0 Amp – Maximum solenoid continuous current
• 1.2 Amps @ 104° F to 0.6A @ 158° F
• 5-90% Humidity (non-condensing)
• UL listed and CE recognized
• Mechanical Dimensions
• (Indoor Model): 6.3" H x 7.33" W x 1.78" D (16 cm x 18.6 cm x 4.5 cm)
• Weight: Novo case w/ transformer 4.2 lbs. (1.90 Kgs)
• Transformer only 2.8 lbs. (1.27 Kgs)

Enclosure Options:

• High-impact plastic enclosure: 11.3" H x 9.3" W x 5.3" D (10 cm x 8 cm x 4.7 cm)
• Stainless Steel Enclosure: 11.3" H x 9.3" W x 5.3" D (10 cm x 8 cm x 4.7 cm)
