Soaplast srl

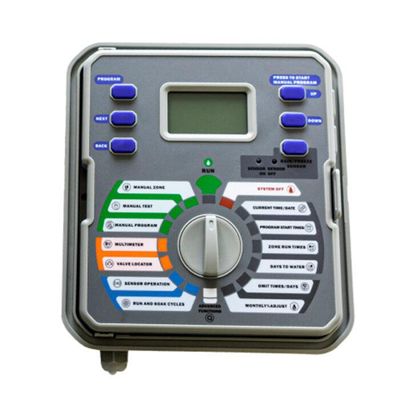

Soaplast - Model AC -Multi-Zone Control Units
FromSoaplast srl
Wi-Fi control unit, Indoor/Outdoor, wired and compliant with current legislation, does not require the intervention of an electrician.
Most popular related searches
irrigation control system
irrigation system controller
irrigation system
irrigation program
garden irrigation
irrigation control
irrigation
garden system
TECHNICAL SPECIFICATIONS
- MODEL AC
- Input: AC 230V 50Hz, 150 mA Output: AC 24V, 1.6A
AVAILABLE ZONES
- From 4 to 24 modular zones, expandable up to 36 zones with expansion modules of 4 and 12 zones.
PROGRAMS
- 6 irrigation programs a,b,c,d,e,f,g
- programs a, c, d can only be used sequentially
- programs b, e, f can be used both sequentially and simultaneously
- Departures: 8 per program
- Duration: in seconds, minutes, hours, 1 second to 9 hours, 59 minutes, 59 seconds
