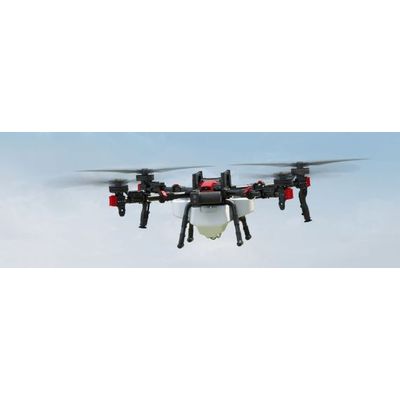

XAG - Model P60 - Multifunctional Agricultural Drone

The XAG P60 offers a flexible, cost-effective solution for spraying, spreading and field mapping. Designed for autonomous farm operation, it delivers unmatched precision and advanced intelligence.

• Max. Flow Rate
• 30 L/min
• Spraying Efficiency
• Open Field | 13.5 ha/h 1
• Modular, Collapsible Design
• Hassle-free Transportation and Setup
• Max. Payload
• 30 kg 2
• Max. Flight Speed
• 13.8 m/s 3
• Real-Time 3D Terrain Mapping
• Autonomous Flight without Preloaded Map
• Max. Spread Rate
• 190 kg/min 4
• Spreading Efficiency
• Fertilizing | 1100 kg/h 5
• Prescription Map
• Variable-Rate Application on Demand

• Aerial Platform
• Basic Parameters
• Overall Dimensions
• 1428x1487x615 mm (propellers folded, XAG RevoSpray 4 included, clamps as the highest point)
• 1428x1487×865 mm (propellers folded, XAG RevoCast 4 included, clamps as the highest point)
• 901×1082×635 mm (propellers & arms folded, XAG RevoSpray 4 included, clamps as the highest point)
• 2517×2575×615 mm (propellers and arms unfolded, XAG RevoSpray 4 included)
• Aircraft Weight
• 37.5 kg (with XAG P60 RevoSpray 4 and batteries)
• 42 kg (with XAG P60 RevoCast 4 and batteries; spray rods excluded)
• Diagonal Motor Wheelbase
• 1850 mm
• Arm Material
• Aluminium alloy
• Protection Rating
• IPX6K
• Rated Takeoff Weight
• 67.5 kg (rated takeoff weight for spraying)
• 67 kg (rated takeoff weight for spreading; spray rods excluded)
• Flight Parameters
• High Precision Positioning Duration with RTK Data
• ≤ 600 s
• Maximum Flight Distance
• 2000 m
• Maximum Flight Speed
• 13.8 m/s
• Recommended Operating Temperature
• 0 ~ 40 ℃
• Hovering Accuracy (Good GNSS Signal)
• RTK enabled: ± 10 cm (horizontal), ± 10 cm (vertical)
• RTK disabled: ± 0.6 m (horizontal), ± 0.3 m (vertical)
• Maximum Flight Height
• 30 m
• Propulsion System
• Motor
• Model
• B30
• Max. Thrust (Single Motor)
• 30 kg
• Rated Power (Single Motor)
• 2200 W
• Electronic Speed Controller
• Model
• XESC-F180
• Continuous Operating Current
• 60 A
• Max. Output Current (30s)
• 180 A
• Foldable Propeller
• Model
• Carbon fiber composites
• Diameter
• 1232 mm
• XAG RevoSpray 4
• Smart Liquid Tank
• Rated Capacity
• 30 L
• Rated Payload
• 30 kg
• Rotary Atomizing Nozzle
• Quantity
• 2
• Atomized Droplet Size
• 60 ~ 400 μm (Depending on the actual operating environment, spray flow, and other factors)
• Spray Disc Rotational Speed
• 1500 ~ 16000 RPM
• Spray Width
• 5 ~ 8 m (Subject to flight speed, flight height, dosage, environment, etc.)
• Flexible Impeller Pumps
• Quantity
• 2
• Voltage
• 50 V
• Max. Operating Flow Rate
• 30 L /min
• Max. Flow Rate (Single Pump)
• 0.5 ~15.0 L /min
• XAG RevoCast 4
• Granule Container
• Rated Capacity
• 45 L
• Rated Payload
• 25 kg
• Smart Screw Feeder
• Quantity
• 1
• Maximum Rotational Speed
• 10000 RPM
• Maximum Spread Rate
• 190 kg/min (Tested with urea and affected by granular size and density)
• Operating Temperature
• 0 ~ 40 ℃
• Storage Temperature
• 0 ~ 40 ℃
• Applicable Granule Size
• 1 ~ 10 mm
• Centrifugal Spreading Disc
• Quantity
• 1
• Maximum Rotational Speed
• 5700 RPM
• Spread Width
• 3-8 m (Subject to flight altitude, seed weight and shape, dosage, surroundings, etc.)
• XAG RealTerra 3
• Module Size
• 859*595*534 mm
• Photo Format
• JPEG
• Image Sensor
• 12 MP Pixels
• Power
• 10 W
• Camera
• Focal Length 2.7 mm
• Operating Ambient Temperature
• 10 ~ 45 ℃
• Shutter Mode
• Mechanical Shutter
• Sensing & Avoidance System
• 4D Imaging Radar
• Model
• RD2488
• Sensing Range
• 1.5 ~ 100 m
• Voltage
• 24 V
• Field of View (FOV)
• Horizontal：±40°; Vertical：+90° ~ -45°
• Power
• 10 W
• Min. Relative Height of Obstacle Avoidance
• ≥1.5 m
• Operating Frequency
• 24 GHz
• Obstacle Avoidance Distance
• 2.5 m (distance between propeller tip and obstacle after the drone brakes and hovers stably)
• Sensing Mode
• Beamforming, 4D imaging
• Max. Relative Speed of Obstacle Avoidance
• ≤13.8 m/s
• Sensing Parameters
• Obstacle's position, distance, direction, and relative speed
• Terrain Radar
• Model
• TR24S100_1
• Operating Frequency
• 24 GHz
• Voltage
• 5 V
• Sensing Range (Height)
• 0.5 ~ 100 m (relative height above the crop canopy)
• Power
• 1.3 W
• Altitude Hold Range
• 1 ~ 30 m (relative height above the crop canopy)
• Sensing Mode
• Millimeter-wave
• Maximum Gradient
• 45° (at flight speed of ≤ 2 m/s)
• First-Preson-View Camera
• Resolution
• 1920 x 1080
• Operating Voltage
• 24 V
• Frame Rate
• 30 fps
• Video Coding Format
• H.264 / H.265
• Image Sensor
• 1/2.8-inch CMOS-RGB image sensor, 2 MP effective pixels
• Focal Length
• 2.7 mm (Forward FPV)
• 2.7 mm (Downward FPV)
• Power System
• Smart SuperCharge Battery
• Model
• M1PPA13970BH
• Rated Output
• 48.75 V/140 A
• Battery Type
• Lithium-ion polymer battery
• Maximum Charging Current
• 100 A
• Rated Capacity
• 20000 mAh
• Charging Ambient Temperature
• 10 ~ 45 ℃
• XAG CM13600BH Charger
• Model
• M2CM1-3600BH
• Input Voltage
• AC 100-120 V~50/60 Hz 15.0 A
• AC 220-240 V~50/60 Hz 16.0 A
• Charging Adapter Quantity
• 1
• Output Voltage & Current
• 56.6V 21A（100~120 Vac 50/60 Hz）
• 56.6V 55A（220~240 Vac 50/60 Hz）
• Power Output
• 1300 W(100 - 120 Vac 50/60 Hz)
• 3400 W( 220 - 240 Vac 50/60 Hz)
• Operating Ambient Temperature
• -20 ~ 40 ℃
• Auto Supercharge Station
• Model
• GC4000+
• Net Weight
• 31.5 kg
• Fuel Tank Capacity
• 15 L
• Total Displacement
• 223 cc
• Output Voltage
• 56.6 Vdc
• Rated Current
• 75 ±3 A
• Reated Charging Power
• 3400 W
• Maximum Output Power
• 5100 W
• Battery Cooling Tower
• Model
• M8BC5AH
• Output Plugs Quantity
• 1
• Max. Capacity
• 4L
• Input Voltage
• 39~60V
• Power
• 80W
• Water Consumption
• ≤500 ml/h
• Communication & Control System
• XAG ACS4 Control Stick
• Model
• M3ACS4A
• Operating Frequency
• 2.400 ~ 2.4835 GHz
• Effective Isotropic Radiated Power (EIRP)
• 2.400 ~ 2.4835 GHz:
• ＜33 dBm (FCC)
• ＜20 dBm (CE/SRRC/MIC)
• Signal Range (No Interference, Obstruction)
• 400 m
• Operating Ambient Temperature
• -10 ~40 ℃
• Charging Ambient Temperature
• 5 ~40 ℃
• Compatible Product
• XAG P150 Agricultural Drone, XAG P60 Agricultural Drone
• XAG SRC4 Smart Remote Controller
• Model
• M3SRC4AH
• Operating Frequency
• 2.400 ~ 2.4835 GHz ; 5.725 ~ 5.850 GHz
• Effective Isotropic Radiated Power (EIRP)
• 2.400 GHz ~ 2.4835 GHz：
• ＜33 dBm (FCC)
• ＜20 dBm (CE/SRRC/MIC)
• 5.725 GHz ~ 5.850 GHz：
• ＜33 dBm (FCC)
• ＜30 dBm (SRRC)
• ＜14 dBm (CE)
• Signal Range (No Interference, Obstruction)
• SRRC : 2000 m
• FCC: 2000 m
• CE/MIC : 1000 m
• Operating Ambient Temperature
• -10 ~40 ℃
• Charging Ambient Temperature
• 5 ~40 ℃
• Compatible Product
• XAG P150 Agricultural Drone, XAG P60 Agricultural Drone
• XAG DL1 Data Link
• Model
• M3DL1A
• Operating Frequency
• SRRC :2.400 GHz ~ 2.476 GHz ; 5.725 GHz ~ 5.829 GHz
• Effective Isotropic Radiated Power (EIRP)
• 2.400 GHz：
• ＜33 dBm(FCC)
• ＜20 dBm(SRRC/CE/MIC)
• 5.800 GHz：
• ＜33 dBm(FCC)
• ＜30 dBm(SRRC)
• ＜14 dBm(CE)
• Signal Range (No Interference, Obstruction)
• SRRC：2 km
• FCC：2 km
• Battery Capacity
• 14700 mAh
• Charing Voltage
• 5V 3A / 15V 2A
• IP Rating
• IP 65
• XAG XRTK6 Pro Mobile Station
• Model
• M3RTK6B
• Positioning Accuracy (Good RTK Signal)
• Horizontal：＜5 cm+1 ppm (RMS)
• Vertical: ＜7.5 cm+1 ppm (RMS)
• Frequency Band for RTK
• BDS: B1I、 B2I、 B3I
• GPS: L1C/A、 L2P (Y)/L2C、 L5
• GLONASS: L1、 L2
• Galileo: E1、 E5a、 E5b
• Built-in Battery Capacity
• 4800mAh
