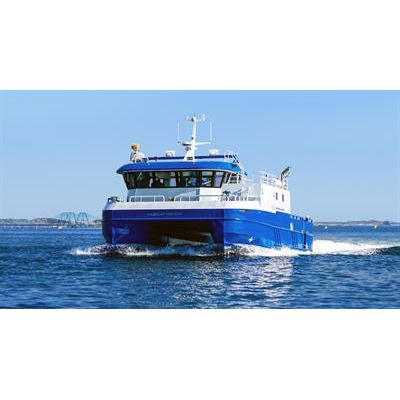

NabCat - Model 1498/1000 MD 1-Etg - Fish Farming Boat
From NabCat
This description, with relevant set-up drawings, is for a catamaran set up to serve fish-farming facilities.
-
Most popular related searches
General information:
General information:
The boat is constructed in accordance with the DNV – Nordic Boat Standard, and complies with the Norwegian Maritime Directorate’s new regulations applicable from 1 January 2015 for this type of vessel.
Main dimensions:
- Length o.a: 14,98 m
- Breadth o.a: 10,00 m
- Breadth, hull: 3,10 m
- Depth, moulded: 2,90 m
Capacities:
- Fuel tanks: 2 x 2000 litres + transport tanks
- for fuel oil 2 x 2000 litres
- Water tank: 1 x 2000 litres
- Speed, no payload: Approx. 12 knots with 25% filling
- with 100% MCR
Other:
- Thwartship web frame = 1000 mm
- Longitudinal stringers = 300 mm
- Wheel house: 5 mm
- Starboard side and deck: 7 mm
- Port side: 6 mm
- Hull: 6 mm
High quality down to the last detail:
- Fully insulated engine room – for a better working environment
- Closed internal side rails – makes cleaning and disinfection easier
- All-welded ribs – for increased strength and rigidity
- The vessel’s wide hull affords excellent stability and buoyancy
- High-quality finishes – both inside and out
Crane:
Supplied complete with a Palfinger PK 65002 (M) G crane, hybrid fitted with 3.5t winch and radio control. Crane will be supplied with marine upgrade. The crane is operated by a hydraulic system mounted on the engine.
