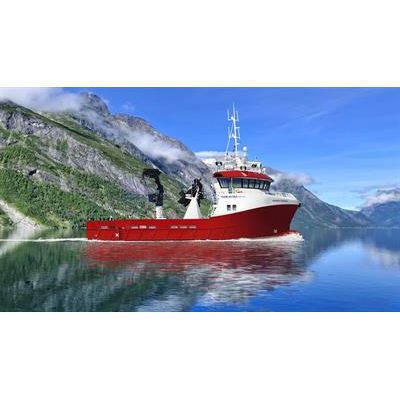

NabWork - Model 2398/1120 MD -Single Hull Multi Purpose Service Vessel
This description, with relevant set-up drawings, is for a single-hull multi-purpose service vessel specifically designed for use in the aquaculture industry.
General information:
The boat is constructed in accordance with the Norwegian Maritime Directorate’s new regulations applicable from 1 January 2015 for this type of vessel.
Main dimensions:
- Length o.a: 23,98 m
- Breadth o.a: 11,20 m
- Depth, moulded: 4,20 m
Capacities:
- Fuel tanks: 40 000 litres
- Water tank: 20 000 litres
- Ballast: 118 000 m3
- Speed, no payload: Approx. 10-11 knots with 25% filling with 100% MCR
Capstan:
4 capstans are installed as standard – 2 x 3 tons and 2 x 8 tons respectively. All capstans have emergency stop switches.
Work / Towing and anchor handling winch:
One double Work/Towing and Anchor handling winch is installed, type 1-VA-60-AHB-SAI (60 tonne) buildt togheter with a 1-VA-10-AHB (10 tonne) winch. The Winch is delivered by MB Hydraulics.
Anchor winch:
- MB Hydraulics 1-AV-22-K2
Navigation and communication:
- JRC Radar, JMA-5312-6
- Olex map-plotter
