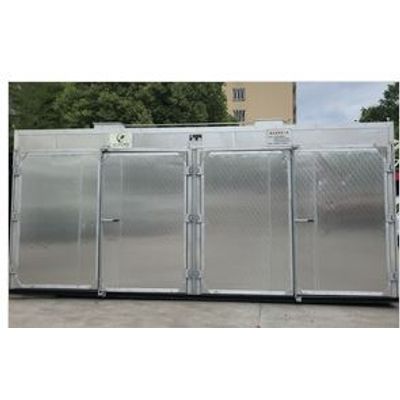

NanYang - Model MYHR -Heat Pump Wood Drying Kiln
NanYang Heat Pump (Air Energy) wood drying kiln is the new-generation environmental protection & energy conservation drying equipment which is developed and manufactured by our company, with technical support provided by Guangzhou Institute of Energy Conversion of Chinese Academy of Sciences. It adopts the heating mode of air energy heat pumps, supplemented by auxiliary electric heating to carry out drying and heat treatment for wood in winter and at night. The air energy heat pump unit follows the reverse Carnot principle. Freon vapor is pressurized by the compressor, becomes the high temperature & pressure gas, and then enters the condenser. After the condensation and liquefaction by the refrigerant, the high temperature heat is released to implement heating & drying for the air inside the room, so as to achieve the purpose of wood drying and heat treatment.
- nergy conservation: The system operation efficiency is up to 35%, which is to say that, the proportion of the electric energy input to the heat used for wood drying is 1:3.5.
- Environmental protection: During the process of system operation, have no pollution, with zero emission, meeting the national environmental protection requirements, able to substitute the boiler.
- Simpleness: The installation is simple, with no need of special equipment calibration. The operation is simple, with no need of special equipment operation certificates. The unattended operation may be achieved, to greatly reduce the labor management expense.
- Low operation cost: Due to the high efficiency and energy conservation of the heat pump, the cost is greatly reduced during the wood drying process. Taking the geographical location of Zhejiang as an example, the electricity cost of a heat pump wood drying kiln is equivalent to the cost of steam supply from a firewood boiler.
