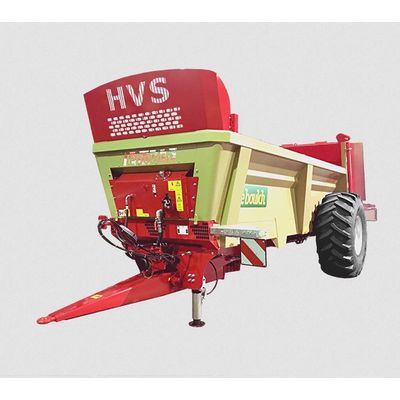

Advantage - Model HVS 51S12 - Narrow Monocoque Muck Spreader

Monoblock, narrow monocoque muck spreader with large wheels manufactured in special steel.

Most popular related searches

2K industrial paint and finishing lacquer.
Sprung drawbar for maximum comfort and driving stability.
Muck spreader designed for a technically permissible payload of 10 t and a manure volume of 10.9 m³.
ADR 100x2200-10S axle with 400 x 80 mm hydraulic brakes. This machine also has a pre-equipment for air brakes.
Wheels 620/75R26 (Alliance) A360 167B (Ø 1,595 mm x 625 mm, 6,555 kg per wheel at 40 km/h)
1,000 rpm drive by homocinetic P.T.O.-shaft with cam security (beater rotation speed: 430 rpm).
Two Ø 14 mm shipping chains with mechanical tensioners.
2 vertical beaters with regular spirals (Ø 900 mm, 10-mm thick reinforced ST420 steel), removable blades and spoon knives.
Interchangeable beater stand on wear ring.
Reversible and interchangeable HARDOX blades (8 mm)
Hydraulic guillotine door with electric control.
Galvanised side boards.
LB300 control box with reverse, moving floor speed and door control.
Independent hydraulic installation.
Hydraulic stand.
Protected carter.
2020 certification.
Easy maintenance and cleaning. Machine delivered with its spare parts book to make the replacement of wear parts easier.
Industrial manufacturing in large series, continuous welds.
3-year warranty (see terms)
