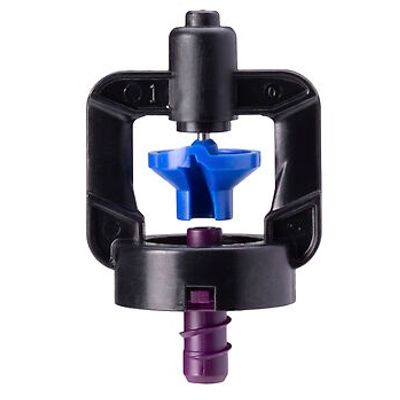

Nelson - Model R5 -Micro Rotator Sprinkler

• Flow: 9-29 gph (34-110 lph)
• Pressure: 15-40 psi (1-2.75 bar)
• Radius: 7-18 ft (2.1-5.5 m)
• Nozzle Size: #35-#50, 8.5-24 5FC

It has higher uniformity, greater distance of throw, and provides better infiltration than comparable micro sprays or spinners. The flow control nozzle option is fully flow regulating as low as 15 psi (1 bar), while pressure compensation in other micro sprinklers begins to function at higher pressures. Low pressure options and a wide range of nozzles and accessories enable the installation of the R5 into any type of micro irrigation system.
