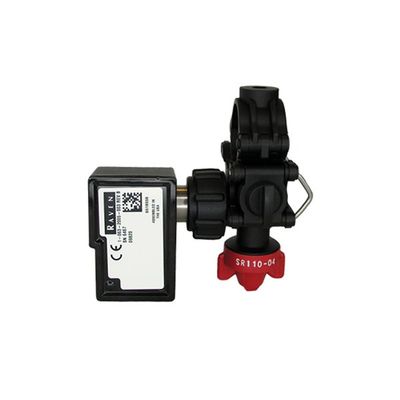

Raven HAWKEYE - Model 2 -Nozzle Control System
The most precise nozzle control system, Hawkeye® 2 ensures accurate droplet coverage up to 2.5 times more accurate out of the tip than comparable systems. It provides consistency across the boom which ensures precise droplet coverage, optimizing input costs. And Raven’s legacy of performance and support means less downtime and more acres covered in a day.
The next generation nozzle control valve (NCV) builds upon the previous system: individual nozzle control reduces skips and overlaps; consistent droplet rate and size reduces drift and increases application quality; and turn compensation minimizes over and under application, achieving the ideal application rate across the boom.
Hawkeye 2’s scalable platform sets up your operation for years of success
- Base Package
- PWM enabled with 16 virtual sections
- Turn Compensation
- Blockage Detection (go/no-go)
- Premium Package
- Individual nozzle control up to 192 sections when paired
with compatible field computer
- Individual nozzle control up to 192 sections when paired
- Over 17% increased flow per nozzle
- Support up to 192 nozzles
- Over 60% reduction of power consumption per nozzle IP69k rating per NCV
- Increased operating pressure of 10 to 120 psi
- Optional severe duty poppets for harsh chemical use
- Enhanced diagnostics
- Independent feedback loop to RCM
- Simplified LED light on NCV lets you know when there’s an issue
- Blockage Detection per nozzle (available Spring 2021)
- Exclusive cabling improves performance
- Increased durability, power reduction, diagnostic abilities
- Over-molded connection provides UV protection and strain relief
