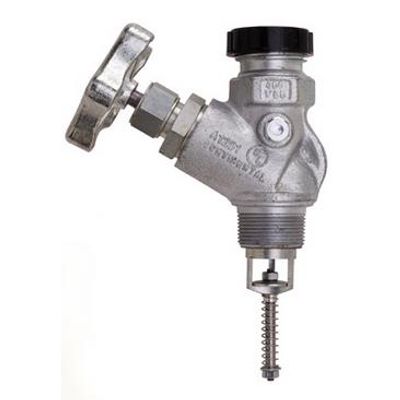

Continental - Model B-1201 -Nurse Tank Vapor and Fill Valves
B-1201 is a high flow, manual shutoff valve for applicator and nurse tanks. It is designed for use as a filler, liquid or vapor withdrawal valve. The rugged ductile iron body is an assurance of durability and a long service life. The built-in excess flow check assembly provides maximum safety in the event of an accidental hose break.
Most popular related searches

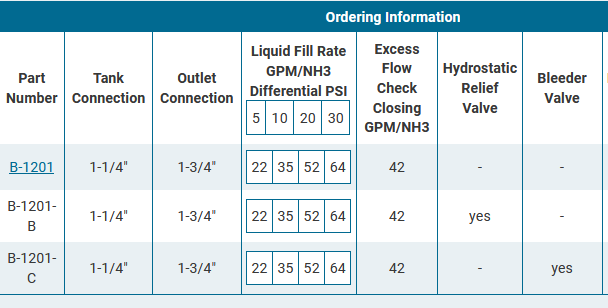

NOTE: LIQUID FILL RATES OBTAINED WITH COMPLETE HOSE ASSEMBLIES SO AS TO DUPLICATE ACTUAL OPERATING CONDITIONS. THE HOSE ASSEMBLY INCUDES: LOADING RISER ANGLE VALVE, HOSE-END VALVE, AND 1’ X 12 FT. OF HOSE WITH NECESSARY COUPLINGS. ALL A-1201 SERIES VALVES USE REPAIR KIT A-2212-RK AND B-1201 SERIES USE REPAIR KIT B-22H-RK
- Stainless steel stem - precision ground and polished.
- Spring loaded"teflon" stem packing - positive seal with pressure tested at 400 psi.
- Optional double coated, zinc plated and painted for extra protection.
- Excess flow check assembly of all valves individually inspected and checked after assembly to assure accurate and dependable operation.
- Spring loaded packing for a free spining hand wheel.
