Fusion Marine Limited

Offshore Mussel Float System

0

The Offshore Mussel Float is a robust and durable polyethylene float that has been developed for mussel farming operations in high energy offshore environments. Its modular construction and simple operation design features make it the ideal choice of float for the offshore mussel farmer when used in vertical axis systems.

Manufacture
The PE floats are made from robust and durable High Density Polyethylene (HDPE), which is ideal for the demanding conditions found in offshore aquaculture. Featuring two unique injection moulded end-caps, the floats are manufactured using specialist butt fusion process and control techniques.

The injection moulded end-caps have a consistent wall thickness throughout with additional structural support in the headline connection area.ATTRIBUTES

  • Pressure injection moulded-end cap ensures strong rope connection points and consistent 12mm wall thickness
  • Advanced butt fusion process and control techniques used in manufacture
  • Machined PE pin design for fastener arrangement for securing floats to mussel lines
  • Machined HDPE end-cap pin secures the rope to the top of the float

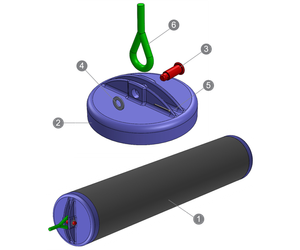

  1. Ø400mm HDPE pipe with 12mm wall thickness
  2. Ø400mm robust and durable injection moulded HDPE end-cap with pin attachment
  3. Ø35mm machined HDPE end-cap pin
  4. M27 stainless steel A4 flat washer
  5. Ø5 x 63mm stainless steel A4 split pin
  6. Spliced rope for headline connection (not included)
