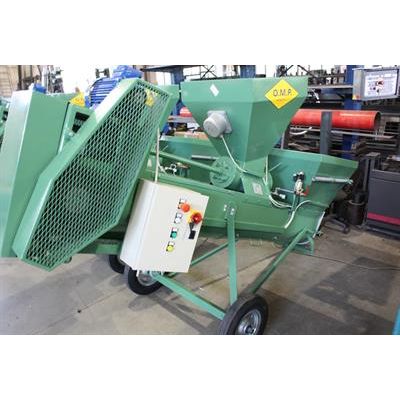

OMP - Model BC -Continuous Concrete Mixer

Machine for continuous operation, transportable, with a maximum output per hour of about 8 m3/h.

Most popular related searches

N°1 Load-bearing frame in thick sheets, with loading hoppers and rubber wheels to facilitate handling
N°1 Screw feeder for dosing the concrete
N°1 Screw feeder, made of welded sections moulded on a tubular shaft, to allow the mixing of the mixture
N°1 Electric vibrator with a power of 0.5 kW to facilitate the discharge of inert materials
N°1 Level probe to indicate the minimum level in the concrete hopper
N°1 Electric motor with a power of 2.2 kW
N°1 Pulley-lever system for dosing concrete in the mix. This system is also used to operate the shaft of the concrete screw feeder and to adjust its speed as compared to that of the mix screw feeder.

Main Technical Features
