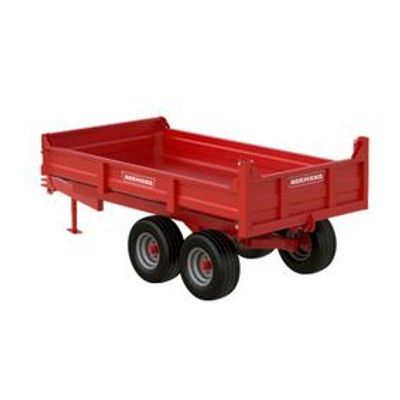

Normand - Model 248M -One Piece Box Dump Trailer
FromNormand Co. Ltd
Available optional accessories: Hydraulic hand pump. Electric pump with mounting brackets and support for battery (without battery). Lights kit with connectors (not installed). Safety chain 10 000 lb capacity.
Most popular related searches
- Capacity: 2 tons
- Load capacity ft3 with 6`` wood beam: 42,5 cu. ft
- Floor plate: 12 ga.
- Load surface: 47 1/2 " x 94"
- Overall length (A): 132 7/8"
- Platform length (B): 96"
- Overall width (C): 52 1/2"
- Height platform to ground (D): 26"
- Overall height (E): 45"
- Coupling height (F): 15 1/2"
- Duping angle (G): 47°
- Free height (lifted up) (H): 8 1/2"
- Side panels (I): 10"
- Front and rear panels (J, K): 17" / 13 1/4``
- Wheels: 6,00 x 10"
- Tires: 20,5 x 8.0-10`` 6 ply
- Tread: 40"
- Spindle: 2 1/4"
- Axle: tandem
- Hub bolt (qty): 5
- Hub capacity: 1 250 lb
- Tandem spindle bolt: 1 1/4"
- Cylinder : 3" x 16"
- Cylinder type: 1 double action
- Swivel coupler: standard
- Mechanical jack: standard
- Automatic latch: standard
- Weight: 875 lbs / 397 kg
