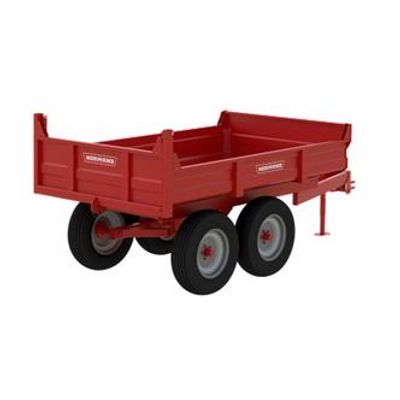

Normand - Model 458M -One Piece Box Dump Trailer
FromNormand Co. Ltd
Available optional accessories: Hydraulic hand pump. Electric pump with mounting brackets and support for battery (without battery). Lights kit with connectors (not installed). Safety chain 10 000 lb capacity. Electric brakes - for 2 wheels. Electric brakes - for 4 wheels. Hand control for electric brakes.
Most popular related searches
- Capacity: 4 tons
- Load capacity ft3 with 6`` wood beam: 62,5 cu. ft
- Floor plate: 11 ga.
- Load surface: 59 " x 100 1/2"
- Overall length (A): 154"
- Platform length (B): 102"
- Overall width (C): 64 5/8"
- Height platform to ground (D): 34"
- Overall height (E): 58 7/8"
- Coupling height (F): 19 1/2"
- Duping angle (G): 46,5°
- Free height (lifted up) (H): 18 1/4"
- Side panels (I): 12"
- Front and rear panels (J, K): 17 7/8" / 17 1/4``
- Wheels: 6.00 x 15.00"
- Tires: 11L x 15.00`` 8 ply
- Tread: 50"
- Spindle: 1 3/4"
- Axle: tandem
- Hub bolt (qty): 5
- Hub capacity: 2 500 lb
- Tandem spindle bolt: 1 1/4"
- Cylinder : 3 1/2" x 24"
- Cylinder type: 1 double action
- Swivel coupler: standard
- Mechanical jack: standard
- Automatic latch: standard
- Weight: 1 395 lbs / 633 kg
