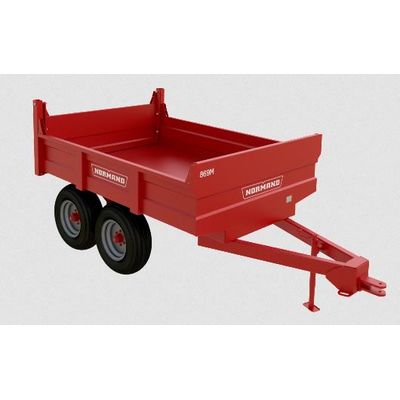

Normand - Model 869M -One Piece Box Dump Trailer
FromNormand Co. Ltd
Available optional accessories: Electric pump with mounting kit. Lights kit with connectors (not installed). Electric brakes for 2 or for 4 wheels. Hand control for electric brakes. Safety chain 20 000 lb capacity.
Most popular related searches
- Capacity: 8 tons
- Load capacity ft3 with 6`` wood beam: 98 ft3
- Floor plate: 1/4
- Load surface: 71 1/2 " x 106"
- Overall length (A): 160 1/2"
- Platform length (B): 108"
- Overall width (C): 77 1/2"
- Height platform to ground (D): 35 1/2"
- Overall height (E): 67"
- Coupling height (F): 23"
- Duping angle (G): 48°
- Free height (lifted up) (H): 14 1/2"
- Side panels (I): 16"
- Front and rear panels: 23"
- Wheels: 8,00 x 15"
- Tires: 11L x 15" - 8 ply
- Tread: 59"
- Spindle: 2 1/4"
- Axle: tandem
- Hub bolt (qty): 6
- Hub capacity: 6 000 lb
- Tandem spindle bolt: 1 3/4"
- Cylinder : 4" x 24"
- Cylinder type: 1 double action
- Swivel coupler: standard
- Mechanical jack: standard
- Weight: 2 580 lbs.
** Also available with Tires 11L x 15 - 12 ply Highway
