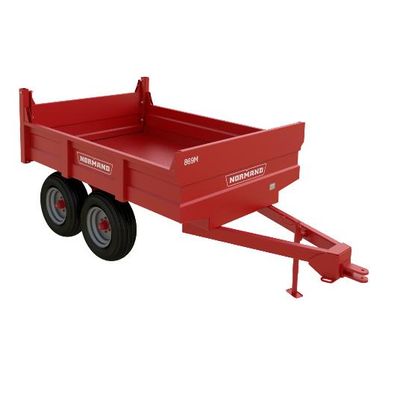

Normand - Model 12712M-5, 12712M-8, 12712M-550 -One Piece Box Dump Trailer

Available optional accessories

• Hydraulic disc brakes - for 4 wheels - installed
• Chute for grain door - not installed
• Safety chain 40 500  lbs capacity

• Capacity: 12 tons
• Load capacity ft3  : 152  / 277
• Floor plate: 1/4``
• Load surface: 86 1/2`` x 141 1/2``
• Overall length (A): 212``
• Platform length (B): 144``
• Overall width (C): 92 1/4``
• Height platform to ground (D): 47``
• Overall height (E): 87 1/2``
• Coupling height (F): 21 1/2"
• Duping angle (G): 50°
• Free height (lifted up) (H): 24"
• Side panels (I): 22"
• Front and rear panels: 40"
• Grain door: Standard
• Wheels: W14C
• Tires: 16,5 x 16,1
• Tread: 72``
• Spindle: 3"
• Axle: tandem
• Hub bolt (qty): 8
• Hub capacity: 10 000 lb
• Tandem pivot: 2"
• Cylinder : Tel. 3 sections
• Cylinder type: 1 single action
• Required volume of oil: 3,5 imp. gallons
• Swivel coupler: Standard
• Mechanical jack: Standard
• Weight: 4 750 lbs.
