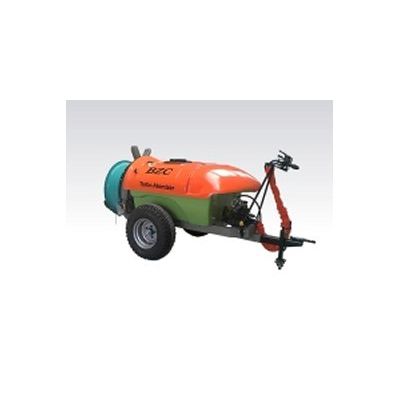

BZC - Model Mistblower 2000 L - Orchard Sprayer
Operating through the PTO cardan shaft. Polyethylene or fiberglass tank. To prevent the clogging, filtering system. In order to get an uniform mixing, Hydraulic Agitation. Suction Device, to fill the tank by pulling water from external water resources. Gearbox is used to transmit the power to the fan. Adjustable air flow of the fan by the setpoints. Adjustable angle and direction of the nozzels.
Most popular related searches
orchard spraying
orchard
trailed orchard spraying
orchard operations
vineyard agriculture
hops
trailed sprayer
tractor
vineyard orchard
orchard tree
Usage Areas
Insecticide of any kind of trees, orchards, vineyards and agricultural areas such as beet, cotton, tabacco and hop fields.
Technical Specifications
Tank Capacity : 1000 Lt, 1200 Lt, 1600 Lt, 2000 Lt
Diaphragm Pump :
- 4 Membrane
- Flow Rate : 85 – 105 Lt
- Pressure : 30 - 50 Bar
Turbo Fan :
- Diameter : 36"
- Nozzle Quantity : 2x8 pieces
- Air Flow : 66000 m3/h
Control Unit : BY-MATIC
Axle System with Leaf
Portable Set - Out System of Turbo Fan
