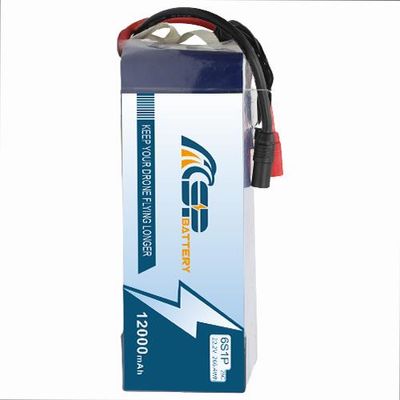

SP Power - Model 12Ah 12S1P 44.4V -Ordinary Drone Battery

Drone Battery Custom Solutions

• SPP Battery specializes in customization, ODM/OEM of agricultural drone batteries.
• We design and manufacture customized batteries or cells according to the specific requirements of our customers, including BMS customization, for professional applications of agricultural drones or industrial class ones.

• SPP drone batteries are widely used in agricultural spraying, industrial patrol, forest fire fighting, construction monitoring, cargo transport, aerial photography, surveying & mapping, so, it’s also the best choice for DIY unmanning drones.

• Nominal voltage: 44.4V
• Typical capacity: 12000mAh
• Configurations: 12S1P
• Cell type: Li-ion polymer
• Positive material: Pure lithium cobalt
• Energy: 532.8Wh
• Max discharge rate: 25C
• Max discharge current: 300A
• Charging time: Approx 3.0 hours (0.5C)
• Standard charge current: 2400mA (0.2C)
• Max charge current: 120A (10C)
• Discharge connector: XT90/XT150/AS150/EC5
• Charging(balancing) connector: JST-XHP-13pin
• Operating temperature range: -20? ~ 60?
• PVC color: Silver or white or black
• Battery size: 172L x 130D x 77W mm
• Battery weight: 3220g
• Product advantages:
• Grade A cell
• Enough capacity
• Excellent high discharge rate
• Extra-low internal resistance
• 500+ long cycle life
