ZJN - Organic Fertilizer Drying Machine

• All Dryers Are Customized
• Engineers available to offer overseas service
• All Year Round After Sale Hotline
• Free Remote Technical Support and Train

Application: Animal Manure Drying, Poultry Manure Rotary Drum Dryer, Organic Waste Drying Equipment, Peat, Animal Wastes, Plant Wastes from Agriculture, and Treated Sewage Sludge, Animal Wastes from Meat Processing, Peat, Manure, Slurry, and Guano etc

Warranty: 1 Year

Certification: ISO9001

5 Types of Organic Fertilizers: Organic fertilizers are derived from plant & vegetable residues, animal matter & animal excreta or mineral sources. A basic advantage of organic fertilizers is that they have complex biological structure. They take time and help of organisms present in soil to break down to simpler nutrient molecules. This process is slow and hence the full and timely consumption of the nutrients by plants is ensured unlike the chemical fertilizers.

Organic fertilizers are economically better than there chemical counterparts. They can be prepared locally on the farm. Made from locally procured material they always have a better availability. They are better on environmental aspects as well. They are made from renewable ingredients which will always be available.

Organic fertilizer mainly refers to the biological fertilizer produced by raw material of fresh chicken manure, pig manure, peat, animal wastes, plant wastes from agriculture, and treated sewage sludge etc. and does not contain any chemical ingredients. The organic fertilizer is high humidity and viscosity and stinky. But it is rich of nitrogen, phosphorus, potassium, organic matter, amino acids, Protein and other ingredients. Through drying, deodorizing and pelleting by ZJN drying machine, these organic fertilizer can be used as medium for planting mushrooms, as well as green compound fertilizer for farmland to improve the soil and provide adequate nutrition for crops.

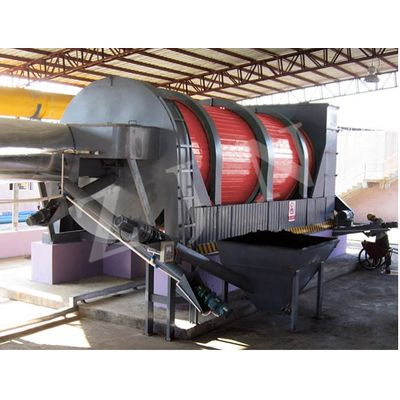

Our drying machine particularly set three drums, materials directly get in touch with hot air. Equipped with automatic conveying, feeding, discharging device. Wet material and high temperature hot air together into the first level drum which with the largest space and special rotating rake device. Wet sticky organic fertilizer drop through the rotary rake device, instantly broken into small pieces, fully contact with the hot air, the surface will dry immediately, thus preventing from re-bonding. Driven by hot air and drum ratation, the organic fertilizer flow to the end of the drum, and folded back, reciprocating through the ring channel in drums and reaching to the discharger when meeting requests. Each type of cylinder is equipped with different angles and distances material boards, which will guarante the organic fertilizer moves along the spiral movement in the drum and maintain adequate residence time and sufficient dispersion. Therefore, material is sufficiently hot exchanged with the hot air. Organic fertilizer dryer also equipped with deodorant, dust removal device to ensure that the air and environment clean.

Drum rotary speed, feeding volume, air volume can all be adjusted according to process conditions and requirements. It is stable and high operability and controllability. Long drying process, low exhaust gas temperature, high heat utilization, material drying completely and uniformly, to achieve a truly high efficiency and energy saving.
