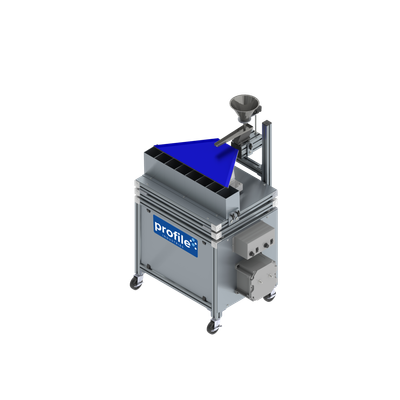

Profile Industries - Model OSCA-1000 - Oscillating Shape Sorter
The Oscillating Shape Sorter is one of our newest technologies. It uses linear oscillating vibrations under a table to make unrounded particles — be that misshapen seeds or debris — climb up the slope of the table. Meanwhile, round particles roll down the left side of the table to the bottom of the incline, which are then collected into 8 individual trays for sorting.
Due to its interchangeable decks offering different textures, the Oscillating Shape Sorter can accommodate a wide range of seed separations.
Are you sorting ceramics, fine powders, grasses and flower seed? Don’t worry — the Oscillating Shape Sorter’s classification range can be adapted to the material being sorted by adjusting the incline angle and amplitude of the oscillation, allowing you to adjust to any kind of product that needs to be sorted.
- Model Number# OSCA-1000
- Configuration Single Deck
- Product Dimensions 32″x24″x48″
- Shipping Weight 320 lbs
- Material Aluminum with abrasive paper
- Aluminum and stainless-steel construction
- Multi sorting deck surface textures
- 8 fractional collection containers
- Vibratory feed control with hopper
- Variable speed control for sorting deck
- Adjustable deck incline angle
- Adjustable deck run-off
- Easy access to clean and sanitize
Optional Features
- Bead blasted stainless steel sorting deck
- 10 abrasive sheet textures available
- Custom collection containers size
- Unique deck textures
