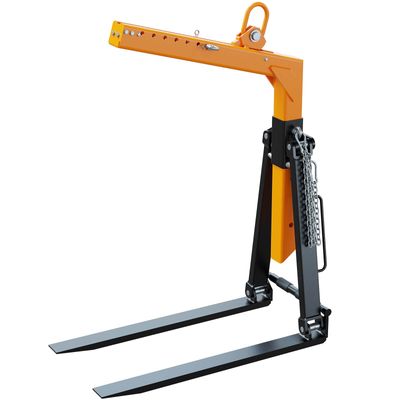

Kinshofer - Model KM 401, 414 and 415 - Pallet Forks for Crane
The efficient KINSHOFER pallet fork with a spring loaded or hydraulically compensating center of gravity can easily be adapted to different loads with adjustable plunge depth and adjustable tine spread. An efficient handling of many different kinds of loads like stone or brickstack, protection trellis or other general cargo is possible due to the hydraulic shifting or the easy adjustment with a stainless steel-plastic-sliding guide in the upper component respectively.
The tool is easy to use due to its dimensions since no part of the pallet fork is wider than a standard pallet, so loads close to walls can be handled without any problems.
The telescopic version of the above pallet forks has been developed especially for overheight loads such as insulating material – adjustable in steps with a lock pin up to a height of 2500 mm / 98.43 in.
with self/manual shifting & tines with lock pin adjustment.
The robust KINSHOFER pallet forks with spring loaded or manual center of gravity compensation can easily be adapted to different loads with adjustable plunge depth and tine spread.
An efficient handling of many different kinds of loads in an economic, one-man operation is possible due to the automatic shifting of the spring loaded version to a preset position or a manual change of position of shifting the collar by the operator. Throat height and tine spread are adjustable in steps with a lock pin.
Thanks to KM 460 universal extension you can extend the throat height of your pallet fork by 750 mm or 1200 mm / 29.53 in or 47.24 in.
KM 401H available with 2000 kg / 4400 lbs load capacity as complete package: pallet fork, rotator, short hoses, upper suspension, protection chain (required in Europe).
Single hydraulic pallet forks available with 2000 and 2500 kg / 4400 and 5500 lbs load capacity, 1050 to 1650 mm / 41.34 to 64.96 in versatile height and and a versatile width of tines from min. 475 to max. 835 mm / min. 18.70 to max. 32.87 in.
KM 401 available with 2000 and 2500 kg / 4400 and 5500 lbs load capacity, 1050 to 1650 mm / 41.34 to 64.96 in versatile height and and a versatile width of tines from min. 475 to max. 835 mm / min. 18.70 to max. 32.87 in.
Both versions also available as telescopic pallet fork T-version with an adjustable throat height of 1200 to 2500 mm / 47.24 to 98.43 in.
For Europe: protection chain is always required and included.
