Trio - Model EF Series - Pan Feeders

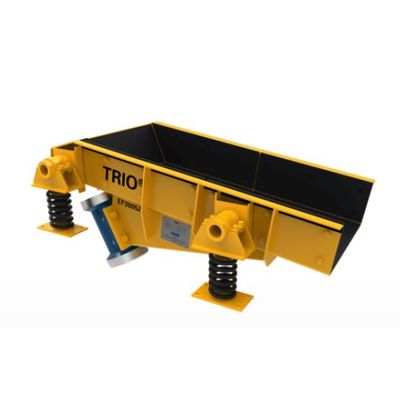

Trio® Vibrating Pan Feeders are used in mining, aggregate and recycling operations and ideally suited for installation in surge tunnels and under surge bins applications to control the feed rate to the next processing station. Bottom mounted arrangement with heavy duty resilient coil springs to support the feeder while absorbing and isolating shock loads. Spring base plates supplied. Suspended mounting arrangement available as an option.

• Electric vibrating motors with internal adjustable counterweights.
• AR-lined bed and side plates.
• Welded and stress relieved steel frame.
• Honey-comb style steel pan reinforcement.
• Overhead suspended and pedestal floor mount models available.
• Heavy and continuous duty design.
• Ideal for high performance operations.
• Available in a wide variety of widths and lengths.
• Can be mounted from horizontal to 10 degree decline.

For application in the mining, aggregate and industrial minerals industries. Excellent positive feeder for mounting in surge tunnels and under surge bins to control the draw down rate.

• Materials Handling (Mining)
• Materials Handling (Aggregates)
