Pan Feeding
The drive motor is connected to the feed sensor, which gives back signal to start and stop the motor automatically, it meets the feeding requirement during every stage of growing period. All the feed pan are filled simultaneously with the same amount of feed at the same time, it eliminates hungry hyperirritability,ensures uniform growth and enhances egg production.
Most popular related searches
broiler breeder pan feeding
breeder pan feeding system
breeder pan feeding
pan feeding system
broiler feeding pan system
broiler breeding
egg production
broiler feeding pan
broiler breeder feeding
broiler feeding system

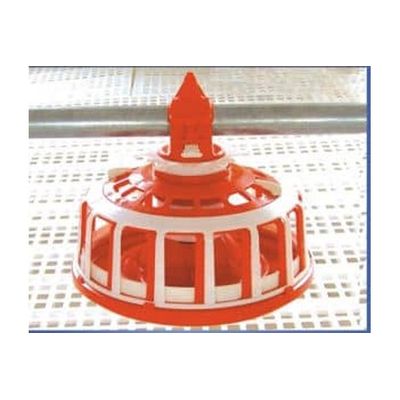

- 4 Feed pan per 3 meter, that is 750 mm interval between 2 feed pans.
- Feeder capacity : 12.5 birds per pan.
- 16 grill, width adjustable from 70mm, 80mm, 90mm (3 levels). When grill width is 52mm and feed hole height is 90mm, the pullet can go in and come out freely.
- Feed pan capacity : 7 levels, 200 – 630g feed per pan, it meets breeder feeding requirement at different stage of growth.
- It has a slide shutter, which shuts the feed pan freely.
- Pan bottom dish could be disassembled easily for washing, there is no need to disassemble the pan completely. It is easy to clean and reassemble
