PAR Sensor

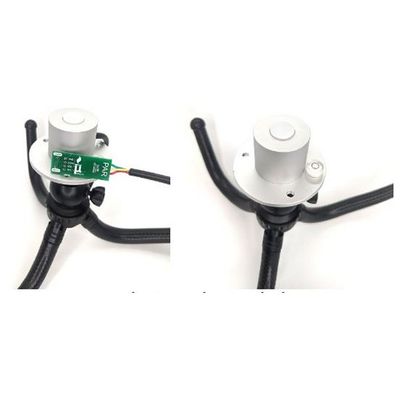

A PAR sensor in a waterproof aluminum enclosure with a 1.5m cable. The sensor comes pre-calibrated and doesn`t require any subsequent calibration. The base comes with a small tripod, mounting bracket, and bubble level. The board uses the Qwiic Connect System, an easy-to-use, polarized, push-to-fit connector. No more mistaken connections or soldering header pins. Adafruit calls these connectors STEMMA QT.
Measure Photosynthetically Active Radiation
- 400~700nm spectral range
- ±5% accuracy
- 0 - 2500 μmol/m²/s
- I2C interface
- 3.3 - 5 V voltage range
The documentation on the specification, and setup of the sensor is available.
The Arduino IDE, PlatformIO, and Particle.io library is in the respective library manager. Any Arduino compatible board will work. Any Raspberry Pi 3, 4 or Zero will work as well.
A python library is available for the Raspberry Pi.
- Spectral Range: 400~700 nm
- Range: 0 - 2500 μmol/m²/s
- Power Supply: 3.3 - 5 V
- Accuracy: ±5% rdg
- Response time: 1s(99%)
- Temperature effect: 0.05%/°C
- Cosine correction: 10% (until 80°)
- Non-linearity: ±2%
- Operating temperature: -40 - 80 °C (-40 - 176 °F)
- Shell material: Aluminum alloy
- Cable length: 1.5 m
- Connector: Qwiic
