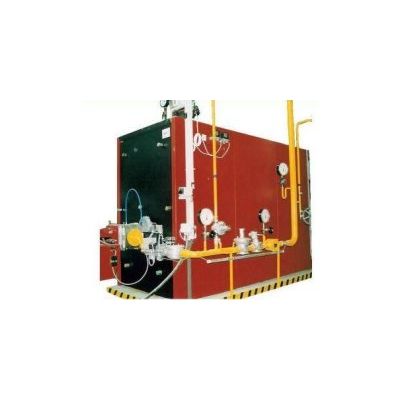

PBS - Model THP-IN -Automatic Hot Water Boiler

Three pass with flame tube, cooled returned chamber, two bundles of fire tubes and a flue gases collector. The boiler is available in the right-hand version (control from the right-hand side) as a standard. The boiler is also available in a left-hand version optionally.

Boiler body consists of cylindrical shaped shell, cylindrical flame tube with turned chamber and two bundles of fire tubes that create a convection heating surface. The front turned chamber is located in boiler cover. The gas-proof boiler cover consists of tilting door with flange for burner fixing. The door is covered by fire resistant insulation with integrated observation window. The door is tilted to the armature part installed on boiler sidewall. On the customer request can be boiler delivered in left, or right variety. The boiler body is completely insulated by double insulation with metal casing. The boiler insulation parts are supplied separately in disposable package for easier boiler transportation. All heating surfaces are easily accessible for cleaning after boiler opening. This assures permanent high boiler efficiency even in case of long-term liquid fuel firing. Burner for gaseous fuels or liquid fuels is built into the door.

• The maximum operating temperature of standard supply is 110 °C
• The maximum operating overpressure 6 bar(g)

• Output 75 ÷ 3 500 kW
• Gaseous fuels and liquid fuels
• Boilers comply with the technical requirements for water boilers EN standard

• Natural gas
• Propane, propane - butane
• Low calorific value gases (biogas, sludge gases, …)
• Fuel oils (ELFO, LFO, HFO)

• Highly economical operation
• High reliability and lifetime
• Use of modern technology
• Easy operation
• Combustion of various types of gaseous or liquid fuels
• Automatic operation suitable for unattended boiler control
• Possibility to adjust the size of boiler and location necks to customer
• Continuous power control
• Qualified after sale service

• Flue gas thermometer with well
• Water inlet and outlet armature piece is equipped by thermometers, manometers, welded on pieces for sensors
• Manometer with three way valve
• Stop valve at discharge tube socket
• Window for check of quality flame
• Flange of exhaust outlet and safety neck
• Cleaning tools for liquid fuel firing boilers
• Flange for connecting the burner

Exhaust gas temperature of the Primatic - IN boilers reaches 180 – 195°C for heating system with water temperature 90/60°C. Exhaust gas temperature have to be higher than 180°C when fuel contains more than 0,5% of sulfur Burner power have not to be lower than nominal power of the boiler. Minimal exhaust gas temperature can be 115 – 120°C.

Return line water temperature has not to be lower than 50°C. Recommended temperature is 55 – 60°C for all kind of fuels.

Emission values depend on used burner type but meet emission limits applied to gaseous and liquid fuels. NOx and sulfur emissions by liquid fuel burning depend on nitrogen and sulfur content in the fuel.

• Boiler has to be installed with acceptance of local standards
• There is necessary to have space for boiler door opening – 90° in the front.
• There is flange connection for outlet and inlet water line, for safety circuit and chimney. The rest of connection id threaded type.
• There is necessary to have enough space from back to reach drain valve and enough space for cleaning of combustion chamber.
• There is no any requirement of free space from right and left sides.
• There is possibility to change door opening direction.
