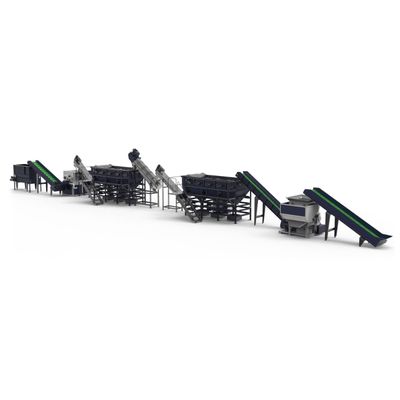

KITECH - PE Film Washing System for Agricultural Applications
The PE Film Washing System is engineered to handle the cleaning and processing of various polyethylene films such as agricultural, mulching, and greenhouse films. The system employs a modular design, facilitating customization and efficient processing of different materials. The pre-processing module includes equipment like bale breakers and metal detectors to prepare material for subsequent processing. In the size reduction phase, large pieces are broken down for improved washing efficiency. The washing module uses techniques such as floating and high-speed friction washing to effectively eliminate impurities like dust, glue, and oil. Drying is achieved through mechanical dewatering and squeezing, significantly reducing moisture content. The sorting module employs advanced technologies like Near Infrared Spectrum for precise material separation. An integrated monitor and control system provides real-time data on output and energy usage, ensuring optimal process efficiency.
- Programmable Control
- Modular Combination Installation
- Multiple Materials Process
- PE Agricultural Film
- PE Mulch Film
- PE Greenhouse Films
Pre-processing modular is freely consists of bale breaker,screen,pre-washer,sorter,metal detector,label remover,and some other equipments. It provides pre-treatment for the raw material.
Modula
Large materials are processed into small pieces in this modular, which improves the washing result and makes the final product easy to packing.
Modular
Dust, glue, label,oil and other impurities can be removed highly effective by washing mod -ule. This modular combines foating washing, hot washing, salty water separating, high-speed friction washing, low-speed friction, spraying, and some other washing equipments.
Modular
Squeezing and drying treatment is used to remove the moisture in the material with low packing density. Mechanical dewatering treatment is used to process the material with high packing density to reduce energy consumption.
Modular
Near Infrared Spectrum , Aerodynamic principles material, and many other technology is used to separate material, color, and specific gravity to purify and sort products.
Modular
Weighing and metering system helps you monitor the output and energy consumption of production line in real time under different materials and production conditions. All data can be connected to ERP system for quantitative assessment. Which ensures that we can update and maintain all user`s systems for a long term.
Heavy duty type, adopt gear motor;
Side walls to avoid spilling of feeding material;
Optimally designed blades are sharp and powerful;
Enclosed cutting chamber to prevent materials flying out;
Knives are externally adjustable;
Special designed hopper to avoid material flying out;
4-way rotating knives with special knife holders;
Extremely robust pedestal bearing housings;
External mounted of bearing pedestal designs;
Screw adopt wear resistant stainless steel;
Triple sealing, External bearing design;
Double station discharge valve at bottom;
All Thumb-wheel speed variable by inverter control;
Heavy duty washing, separation of different specific densities material;
Rotor and blades adopt wear resistant steel;
Rotor with dynamic balance treatment. Accuracy: ±3-5g;
Active material washing to protect downstream units;
Rotor with dynamic balance treatment. Accuracy: ±3-5g;
Mild circular screen in polygon 4 piece version;
Washer/dryer housing built in stainless steel welded construction;
Heavy built shaft and balde;
Double hydraulic press units;
Motorized Screw Squeezing;
Pipeline built in stainless steel welded construction;
All part touch raw materials are stainless steel;
Hot air drying system;
Direct connect with pelletizing process;
Large Storage capacity;
International brand Low voltage components ;
Double circuit safety relay;
Intelligent and modular PLC controlling system
