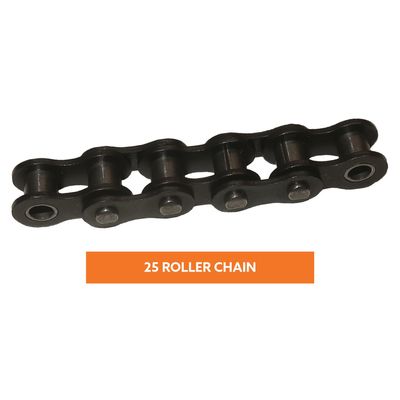

PEER Chain - Model 25R - ANSI Standard Roller Chain

Part No.: 25R
Industry No.: 25
Pitch (P): 0.250
Pin Diameter (D): 0.091
Roller Width (W): 0.125
Roller Diameter (R): 0.130
Plate Height (H): 0.228
Plate Thickness (T): 0.03
Overall Width (F): 0.154
Overall Width (G): 0.185
Unit of Measure (Inches or Millimeters): in
Average Tensile Strength (Lbs.): 1,036
Average Weight Per Foot (Lbs./Ft.): 0.087

Roller chains in general and the ANSI 25 chain specifically are created with two types of links that alternate: roller links and pin links or sometimes referred to as inner and outer links. Roller chain is incredibly important for manufacturing, industrial and agricultural applications as it provides a great deal less friction than similar designs. This allows roller chains to be more durable, last longer with reduced wear and higher levels of efficiency. Roller chain comes in a variety of sizes, as certified by ANSI to ensure the interoperability of the parts. Sizes begin at #25 and up through #240.
