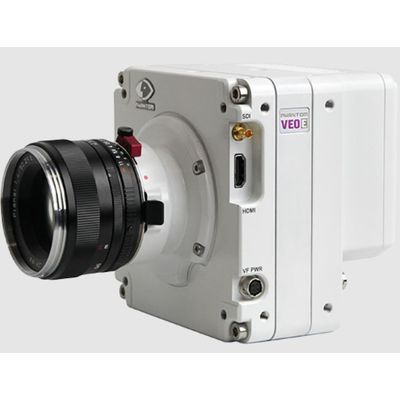

Model VEO-E 310L - Phantom VEO Camera
The Phantom VEO-E 310L is a 3 Gpx/second high-speed camera with a 1 Mpx sensor delivered in 35mm format. This combination is perfect for college and university laboratory settings as it allows researchers to use high quality and readily available optics while achieving the frame rates required for a variety of subject matter. Flexibility is critical for any research tool at a college or university. Interchangeable lens mounts increase the camera flexibility by allowing users to decide which lens is best for which activity. Nikon, PL, C, and Canon EF (with electronic control) lenses are compatible with the VEO-E and alternating between them is simple and quick.
Most popular related searches
The body of the VEO-E camera is constructed from milled aluminium and is designed to be extremely lightweight. The lightest of the VEO series of cameras the E body style is only 4 lbs and built to protect the most sensitive internal parts of the camera. The electronics are sealed to protest from airflow thereby lowering the possibility that dust will gather on the sensor.
The Phantom VEO-E 310L is compact, lightweight, and cost-effective. Leveraging the reliable Phantom VEO camera base it is meant for software-based high-speed imaging.
- 3,200 fps at 1280 x 800
- Sensitivity: Quantum Efficiency*
- Mono: 33.9%
- Color: 29.5%
- 18 or 36 RAM
- Streamlined Connectivity
- HDMI and SDI video outputs
- Image-Based Auto Trigger (IBAT)
- Programmable I/O
- Cine RAW file format
Short Description
- Phantom VEO-E cameras are compact, lightweight and built for efficient image capture. The 310 model captures at over 3,200 frames-per-second at one megapixel resolution.
- Features include Programmable I/O, HDMI video, Canon EOS lens support.
Throughput/Speed
- 3 Gpx/second
- Max speed at full resolution of 1280 x 800 is 3,200 fps
- Max speed at reduced resolution of 64 x 8 is 650,000 fps
- Max speed of 310L-E225 is 225,000 fps
- Minimum frame rate of 24 fps
Sensor Specifications
- CMOS sensor
- 1280 x 800 pixels
- 20 µm pixel size
- 25.6 mm x 16.0 mm
- 12-bit depth
- TE cooled
- CAR in 64 x 8 increments
- EMVA 1288 measurements at 532nm
- Quantum Efficiency: 33.9% mono; 29.5% color
- Max. SNR: 44.1 dB
- AST (p) 99.4 mono; 115.9 color
- Saturation Capacity (e-): 25918 mono; 27880 color
- Temporal Dark Noise: 33.1 e-
- Dynamic Range: 57.7 dB
Exposure
- 1 µs minimum exposure
- Global electronic shutter
- Exposure Index (E.I.) for controlling apparent ISO
- Extreme Dynamic Range (EDR)
- Auto Exposure
- Shutter Off mode for PIV
Memory
18 GB, 36 GB high-speed internal RAM
Record Times
7.5 seconds at maximum frame rate, largest resolution and into maximum internal memory
Special Features
- Segment memory for up to 63 cines in multi-cine mode
- Continuous recording
- Programmable I/O
- HD-SDI and HDMI video
- Event marking
- Frame timestamp (IRIG SMPTE or MISP)
- IRIG in/out (modulated and unmodulated)
- Shutter off mode for PIV exposure
- 480 ns straddle time
- Standard Internal mechanical shutter for automatic/remote Current Session Reference (CSR)
- Image-Based Auto-Trigger (IBAT)
- One 12 VDC, 6W auxiliary power port
- Secondary IP address
- Field-based firmware upgrades
Triggering
- Programmable trigger location (pre/post trigger recording)
- Image-Based Auto-Trigger
- Trigger from software
- Hardware trigger BNC
- High Voltage (HV) trigger compatible
Timing and Synchronization
- Frame synchronization to internal or external clock (FSYNC)
- IRIG in/out (modulated or unmodulated)
Signaling
- Dedicated Trigger and Timecode In BNCs on camera body
- Programmable I/O ports includes adjustable (assign and define) signals including F-sync, strobe, event, trigger output, ready and more
Connectivity
- Gb Ethernet for control and data downloads.
- Standard RJ45 port.
Camera Control
- Phantom Camera Control (PCC)
- SDK available
Video Out
- 3G HD-SDI and HDMI on all VEO models.
- Supports up to 1080p60.
Lensing
- Nikon F-mount standard, supports F & G style lenses
- Canon EOS mount optional
- PL-mount optional
- C-mount optional
- (lens not included)
Video Processing
- Brightness
- Gain
- Gamma
- Saturation
- White Balance
- Pedestal
- Tone curve
- Filters
- Color matrix
- Image flip and rotate
- Crop
- Scale
Data Acquisition
National Instruments M- and X-Series DAQ modules with integrated support in PCC
Motion Analysis
- Basic measurements via Phantom Application:
- Distance
- Speed
- Acceleration
- Angles and Angular Speed
- Manual and Automatic point collection for target tracking
- Compatible with 3rd party solutions
Supported File Formats
- Cine RAW & Cine Compressed
- AVI
- h.264 mp4
- Apple ProRes .mov
- Multipage TIFF
- MXF PAL & MXF NTSC
- Uncompressed QuickTime
- Windows BMP
- LEAD
- JPEG
- JTIF
- RAW
- DNG
- DPX
Power
- 100 - 240 VAC, 16-32 VDC via primary power input.
- 80 Watt 24V power supply included
Mechanical Specifications
- Size (without lens):5 x 5 x 4.4" (127 x 127 x 111 mm) (L x W x H);
- Weight: 4 lbs (1.8 Kg)
Environmental Specifications
- Operating Temperature: -10°C - 50°C
- Shock:MIL-STD-202G Method 213-B. Rated
- 30G with shutter;
- 100G without shutter;
- sawtooth wave, 11ms, +/- 10 pulses all axes(60 total)
- Vibration: Rated 12Grms; Figure 2A-1, Test Condition D,15 min per axis(without lenses)
APIs
- Phantom SDK
- LabView
- MatLab
Ships Standard With
- Power supply
- Ethernet cable
- SDI DIN Cable
- Phantom PCC software
- Getting Started Guide
Options
- Canon EOS lens mount
- PL-mount
- C-mount
