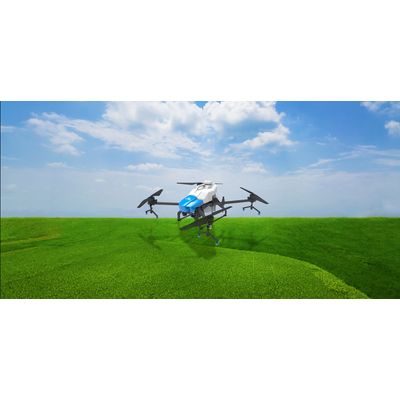

AGR - Model A22 RTK -Plant Protection Drone
A22RTK continues the superiority of the classic design of AGR agriculture drone . It has a pressure casting body and one-piece molding, which increases the maximum load of the drone to 22 kg. The newly designed T-shaped nozzle makes the operation efficiency reach a new stage; The AG3Pro intelligent flight control system is equipped to accurately and efficiently promote the technological upgrading and innovation of the agricultural industry development.
The new generation A22 RTK fully embodies the capabilities of AGR’s complete machine development, flight control research and development, spray design and system management ability
Multiple upgrade schemes, Module integration, Stable and trustable arithmetic
Integrate 20 motherboards, main control, digital link, RTK and other modules in simple design, no need for connecting wires between the previous modules, IP67, lighter weight of the control module.- All-in-one injection molding,
Simple and consistent, easy to maintain
- 22L (plug-in) CAPACITY WATER TANK
Fully built-in magnetic sensitive liquid level sensor,
real-time feedback of pesticide usage - Four-way wall-mounted brushless water pump
Accurately controls the spray volume, with a
maximum flow rate of 8 liters/minute - The effective spray width of T-type
Pressure relief nozzle can reach 8 meters, and the
operating efficiency is 4-14 Ha/hour
A22 RTK supports millimeter-wave ground-simulating radar and obstacle avoidance radar to realize terrain following and obstacle collision warning. If encountered obstacles, you can choose to hover or bypass the obstacles to improve flight safety.
A22 RTK is equipped with dual high-definition FPV cameras for forward and downward viewing, real-time image transmission improves flight safety and operational efficiency. The FPV screen and operation interface can be quickly switched on the APP . Through the visual imaging in front and below the flight, combined with the AG3 Pro intelligent algorithm, the image dotting and intelligent correction function are realized. Greatly reduce the work intensity and cost of field surveying and mapping. Improve the accuracy and efficiency of flight management.
Easy operation, stable image, high UI adaptability, up to 8 hours of battery life
If you have a network, you can install a network RTK pointer to realize centimeter-level route mapping and planning. Optional mobile RTK base station. Provide RTCM differential data source within 2000 meters to achieve centimeter-level positioning. The A22 RTK APP 3.0 software provides manual, AB point, route planning and other operation modes. It can feed back or adjust the operation data in real time, and quickly resume the breakpoint operation after adding medicine and changing the battery. The operation is simple. The overseas version of the APP realizes free switching between English, Portuguese, Spanish, Japanese, Korean and other over 10 Chinese language versions.Intelligent quick charge battery, fast charging within 20 minutes;IP65, equipped with AG3 Pro intelligent power management system, battery management data can be viewed through APP, to achieve battery life cycle management. The A22 RTK high-capacity smart battery not only satisfies the efficient operation of plant protection drones, but can also directly power the remote control, RTK base station, etc.
The charger equipped with a 4G module can quickly check the charging status through the AGR Smart APP to improve battery efficiency.
Two-way quick charge can be realized, and two batteries can be fully charged within 20 minutes to improve battery turnover
(Compatible with Q10 21 version batteries and A22 batteries)
26 liters large capacity, accurate and efficient spreading
AGSpreader adopts high-speed jet ducted air supply and drum metering method, which can quantify seeds, fertilizers, feed and other particles to the target area at high speed and evenly so as to realize the harmless and uniform spread of materials and seeds. Support 0.5mm-15mm particle spreading, spreading width up to 6m, bin volume 26 liters, maximum spreading speed up to 5KG/Min.- Visual Supervision Platform, Supervising Flight Data is more Convenient
- Real-time Monitoring of Flight Status, Aircraft Model / Flying Altitude /Speed / Trajectory
- Comprehensive Operation Management System for Easy Management of Plant Protection Operation Progress
- Efficiently Assign Work Tasks, View Plot Area and Flight Defense Distribution
- Flexible Retrieval of Job Data for Analysis of Plant Protection Drone Status Information
- Support Viewing Electronic Fences, No- Fly Zones, etc.
Drone Parameters
- Body size (mm):1200×1191×570
- Remote control distance (m):2000
- Packing size (mm):1025×755×580
- Ground clearance (m):30
- Net weight (KG):19
- Battery weight (KG):8.5
- Full load takeoff weight (KG):49.5
- Battery size (mm):290×236×116
- Operating area (Ha/hour):60-200mu
- Charging time (minutes):15-40
- Single flight operation area:21mu(1L/mu)
- Charger size (mm):303×150×220
- Droplet size (μm):80-250
- Charging power (w):2400
- Flow rate (L/min):1-8
- Carry idler hovering power (w):2500
- Spray width (m):3-8
- Fully loaded hovering power (w):5500
