Arrowquip - Model Q-Catch 87 Series - Portable Cattle Chute, Alley and Tub

The NEW Q-Catch 87 Series portable cattle chute, alley and tub features Arrowquip's signature cattle handling components in a compact and convenient portable unit. Available in multiple options, the new lineup of Q-Catch 87 Series portable cattle handling equipment provides ranchers with the flexibility to get the job done, no matter where it needs to happen.

Taking portable cattle handling to the next level, Arrowquip has introduced a new option, their very first FULL portable system. This new model features an 18' alleyway to improve the way cattle flow through the system. Combining these two cradle-shaped Easy Flow Alley sections with the low-sheeted tub and Q-Catch 87 Series cattle chute that feature our patent-pending 3E components will ensure cattle will flow through your system with ease.

• Engineered For Transport

  Towing is one of the biggest differences in the new portable cattle handling system. The entire unit folds up into a compact and secure package for travel, ensuring your equipment will get to your destination safely. The enhanced frame features 2" x 6" beams on the top, and 3" x 3" beams on the bottom for structural integrity, and setup when you get to your location only takes a matter of minutes with our NEW fully Hydraulic Jack system.

• Even More Compact Collapsible Tub

  The collapsible tub on all Arrowquip portable cattle handling units has been completely redesigned to be truly compact. The tub is folded in a way that shortens the unit by up to 5' 8" when towing. This brilliant engineering has made the NEW 18' alley portable unit the same length as the previous Q-Catch 86 Series Portable Cattle Chute, 8' Alley & Tub model was!

• NEW 18' Easy Flow Alley

  The NEW 18' Alley section turns your portable cattle chute, alley and tub into a fully portable handling system. By providing enough space for you to move all cattle out of the tub and into the alley, it provides the capacity you need to move your cattle though the system without having to stop and start the flow of cattle repeatedly.

  The Easy Flow Cattle Alley sections are equipped with our patent-pending 3E technology which helps to draw cattle in the right direction using light. Two removable panels on each alley section can be moved into multiple positions to control what cattle see, giving you enhanced control of cattle movement.

  Also available in an 8' alley model.

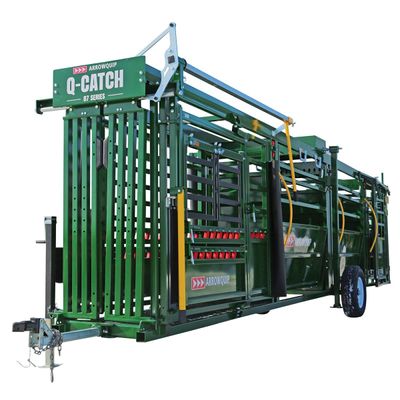

• Q-Catch 87 Series Cattle Chute

  You'll have maximum control, safety, and efficiency even when you're working cattle alone with the NEW Q-Catch 87 Series at the front of the system. The world's quietest manual cattle chute is at your fingertips, so you're guaranteed a quiet cattle handling experience anytime, anywhere.

• New barred head gate design uses light to draw cattle into the chute
• Q-Catch head gate operation handle can be situated anywhere along the side of the chute.
• Curtain-style head gate opens to a full 30" top to bottom for cattle to exit the chute
• Easy to use push-pull squeeze lever
• Squeeze ranges from 29.5" fully open to 7.75" fully closed
• The Q-Catch squeeze locking system features a dual friction lock with infinite adjustments
• New Direct Drive system provides faster head gate response
• Poly-coated slam latches eliminate metal clanging
• Two rows of rump fingers ensure safety no matter the size of the animal
• Poly-composite rump fingers are engineered to endure high pressure
• Ambidextrous rolling door that can be operated from either side of the chute and is reversible
• The rolling door running track is top-mounted, eliminating the issue of build-up
• Vet door opens in both directions for a full 180° of maneuverability
• Low-profile latch ensures the vet cage door will not swing to the inside of the chute when slammed shut
• Swing-out top and bottom access doors can be used individually or together to access the entire animal
• Side access panels are removable and can be configured in a variety of positions to suit your operation's needs
• 12.75" top to bottom needle door access
• New drop-down needle bar allows for quick injections
• Rectangular tubing limits cattle bruising
• Pivot and latch points feature poly bushings for silent operation
• True virgin rubber flooring dampens sound and provides great traction
• Rubber floor is backed by a lifetime guarantee
• Head Gate locking pin adds safety when transporting the cattle chute, or completing maintenance
• Both sides of the Easy Flow Alley can be adjusted from one side
• Cradle-shaped Easy Flow Alley section ranges from 29.5" to 18" in width
• Both side panels drop down fully, allowing the handler to access the animal in case of emergency
• Safety latches on the Easy Flow Alley side panels add security and control when adjusting, and ensure the sides will not drop accidentally
• Easy Flow alleys come with removable panels so you can control what cattle see in the alleyway
• Single piece steel frame has been reinforced with new 2"x6" beams that run the length of the unit
• The tub folds in on itself so that it is compact for transport
• Tub measures just 44" wide when panels are folded in
