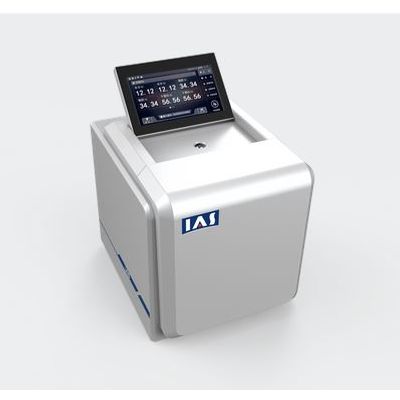

IAS - Model 5100 - Portable Grain Analyzer

FromIntelligent Analysis Service (IAS)

SHARE

IAS-5100 is the perfect device for fast and non-destructive analysis of grain and oil crop samples. Multiple parameters such as moisture, protein, oil and fat content can be measured in less than a minute. The device is highly portable as it contains an internal battery, allowing for efficient on-site analysis. Its innovative auto sample mixing compartment design enables a single touch operation that completes the referencing, calibration, analysis, and reloading all in one run to deliver accurate and consistent results.

Most popular related searches

portable grain analyzer

Weight: 11 lb / 5 kg
Additional Software: TISO Analysis software, calibration building software
Light Absorbance Repeatability: <0.0003 AU
Light Source: Tungsten Halogen lamp, life span 10000 h
Light Spot Diameter: 25 mm
Operation System: Linux
Power Supply: 24V / 3A
S/N Ratio: 10000:1 at average of 128 times
Sample Cup Volume: 300 ml
Sample Forms: Granular solids
Wavelength Accuracy: <1 nm
Wavelength Range: 950-1650 nm
Wavelength Repeatability: <0.05 nm
Working Temperature: 41-104 F / 5-40 C
Working Time on Battery: >3 h

High-performance NIR Spectrometer with DMD (Digital Micro-mirror Device) technology
Large 25mm-diameter light aperture ensures fast and repeatable measurements
Side-illuminated body with a rotating sample cup for granular solid samples
Wide wavelength range of 950-1650nm supports more applications and ensures higher accuracy compared to short wavelength NIR devices
Built-in lithium battery (optional) enables on-site analysis and portability
OTA remote technical support for software and calibration updates
