CID - Model CI-202 -Portable Laser Leaf Area Meter

FromCID Bio-Science, Inc.

SHARE

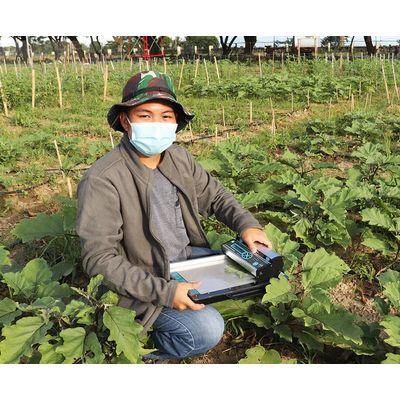

Gather data faster in the field or lab. Durable and self-contained, the CI-202 Portable Laser Leaf Area Meter measures virtually any type of leaf, needle, or seed. Plant physiology:Analyzing precise leaf area measurements to track and relate changes in shape characteristics to physiological function. Forestry & environmental applications: Taking measurements non-destructively, the CI-202 allows forestry and climate researchers to collect essential data without disturbing the environments they study. Crop research & agronomy:Agronomists optimize crop production using leaf area measurements to track crop health in response to environmental and nutrition changes.

Most popular related searches

portable leaf area monitoring

leaf area monitoring

crop health monitoring

crop monitoring

Precise laser scanner measurements, on-board data logger, and simple USB transfer make the CI-202 a must-have for researchers who want to work confidently and efficiently.

One scan, 6 measurements

The Leaf Area Meter measures leaf area, length, width, and perimeter & calculates shape factor and aspect ratio.

No calibration required

Ready to use right out of the box, the Leaf Area Meter allows you to begin taking measurements immediately.

Easy data transfer & charging

Transfer data and charge the device with a straightforward USB interface.

Accurate measurements of challenging leaf types

The built-in, transparent protective sheath allows for accurate measurements of even curled leaves by carefully flattening them during the scanning process.

Painless to pack

The handheld scan head and detachable pallet design allow for easy transportation to any field location.

Instant measurement verification

Verify measurements in real-time with the built-in, high-contrast LCD screen.

Measuring Thickness: 1.5 cm maximum

Measuring Width: 15 cm maximum

Measuring Length: 36 cm

Scanner: 670 nm laser

Resolution: 0.01 cm2

Accuracy: ±1% for samples >10 cm²

Interface: USB 2.0

Memory Size: 8,000 measurements

Dimensions: 38.5L x 29W x 12.5H cm

Weight: 1,500 g

Display: 16 characters x 2 lines LCD

Scanning Speed: 127 mm/second

Battery: 7.2 volt rechargeable NiMH

Battery Capacity: Over 250 scans per charge

Operating Temperature: 0-50 °C
